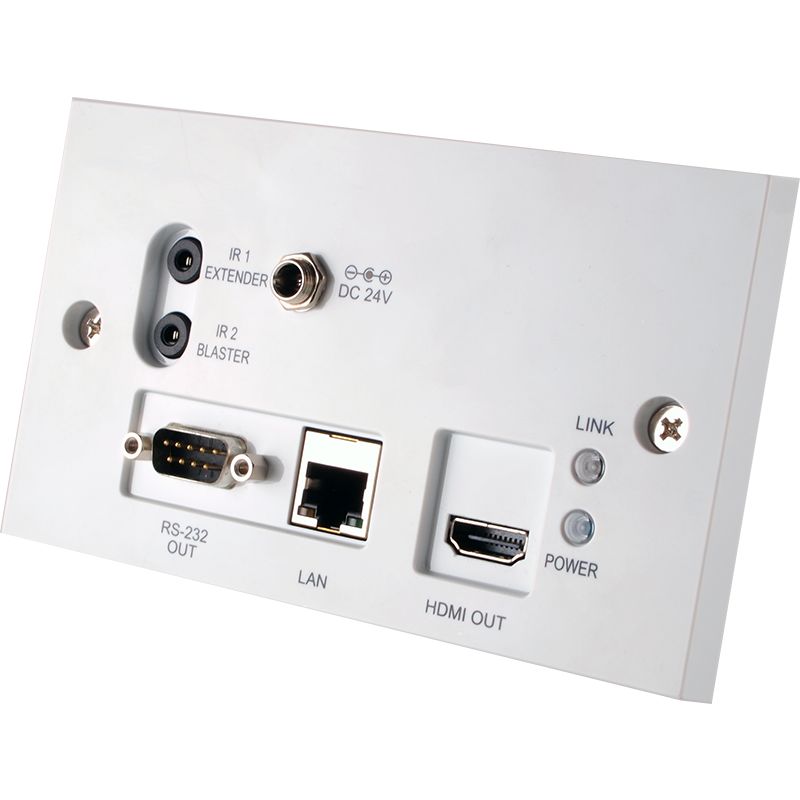

CH-507RXWPBD - 4K60 (4:2:0) HDMI over HDBaseT Wallplate Receiver with IR, RS-232, Bidirectional PoC & LAN (2 Gang UK)

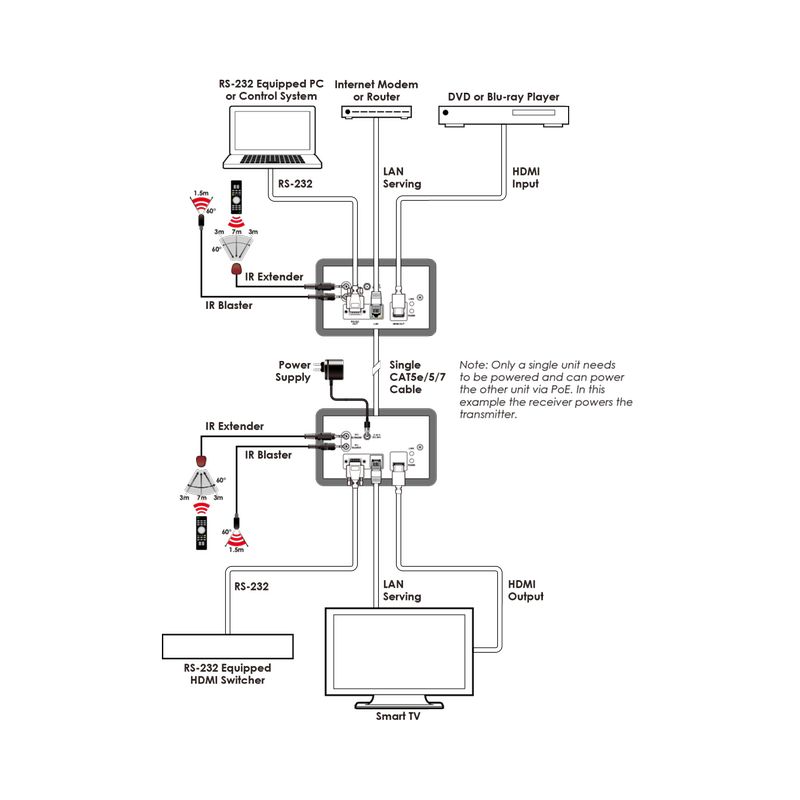

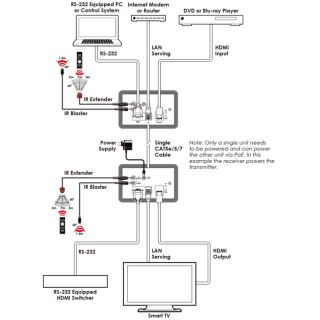

The HDMI over Single CAT5e/6/7 Wallplate Transmitter and Receiver set can send uncompressed video/audio and IP data over a single run of CAT5e/6/7 cable up to 100 meters. It has the added benefit of control through the built-in RS-232 pass-through and 2-way IR control and a LAN serving connection. Additionally, it has bi-directional Power over Cable (PoC) functionality that allows for greater flexibility in installations.
- HDMI (with 3D format and 4K2K resolution support), HDCP and DVI compliant
- Supports HDCP repeater and CEC bypass functions
- Simultaneous transmission of uncompressed video/audio and data over a single CAT5e/6/7 cable up to 100m/328ft
- HDBaseT? 5Play convergence: uncompressed high-definition Video and Audio, LAN serving, bi-directional Power over Cable (PoC) and IR/RS-232 Control pass-through
- Supports uncompressed video up to 4K2K resolution (3840×2160@30 Hz or 4096×2160@24 Hz)
- Supports pass-through of high-definition audio formats - LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- Wall-plate design and installation friendly
| Inputs | 1x RJ-45 [1x HDMI & Propriety Data] 1x 3.5mm [1x Infrared Receiver] |

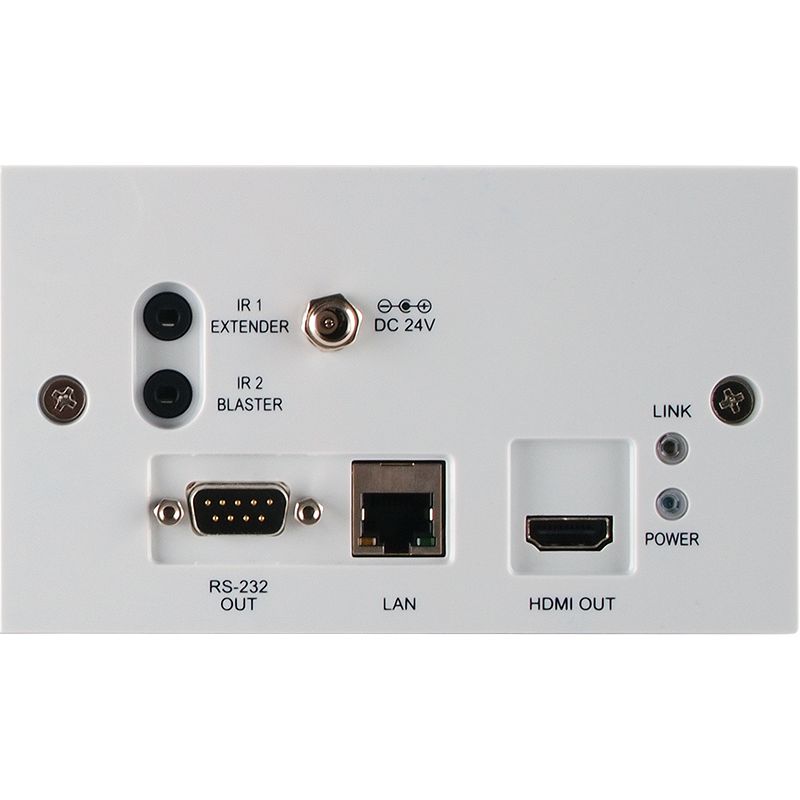

| Outputs | 1x HDMI [1x Uncompressed AV and Data] 1x 3.5mm [1x Infrared Emitter] 1x DE-9 [1x RS-232 Data] 1x RJ-45 [1x LAN Serving] |
| PSU: | 24V/1.25A |
| Dimensions | 146mm [W] x 86mm [D] x 48mm [H] |
| Net Weight | 160g |
