? HDMI input and output with 3D & 4K video support (18Gbps)
? 1 HDMI output (Functions as local monitor output)
? HDBaseT 3.0 compatible, Backward compatibility with HDBaseT 2.0/1.0 product
? Supports HDBaseT features: HD video and audio, individual 1000BaseT and 100BaseT Ethernet ports, POH and control (bi-directional IR/RS-232/ USB pass-through)
? Supports analog audio and optical audio pass-through.
? Multiple USB hosts may be connected at once (up to 2 total, between the Tx and a compatible Rx unit) with a single selected host active at a time
? Supports providing PoH power from Transmitter to Receiver in same HDBaseT port.

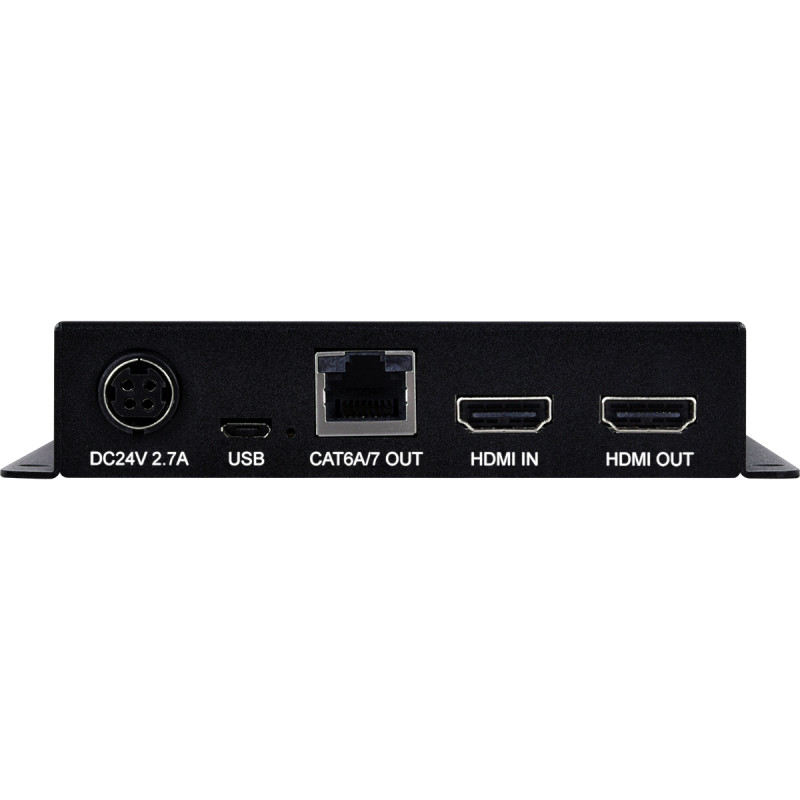

Interfaces | |
Input Port | 1×HDMI (Type-A) |
Output Port | 1×HDMI (Type-A) 1xHDBT(RJ-45) |

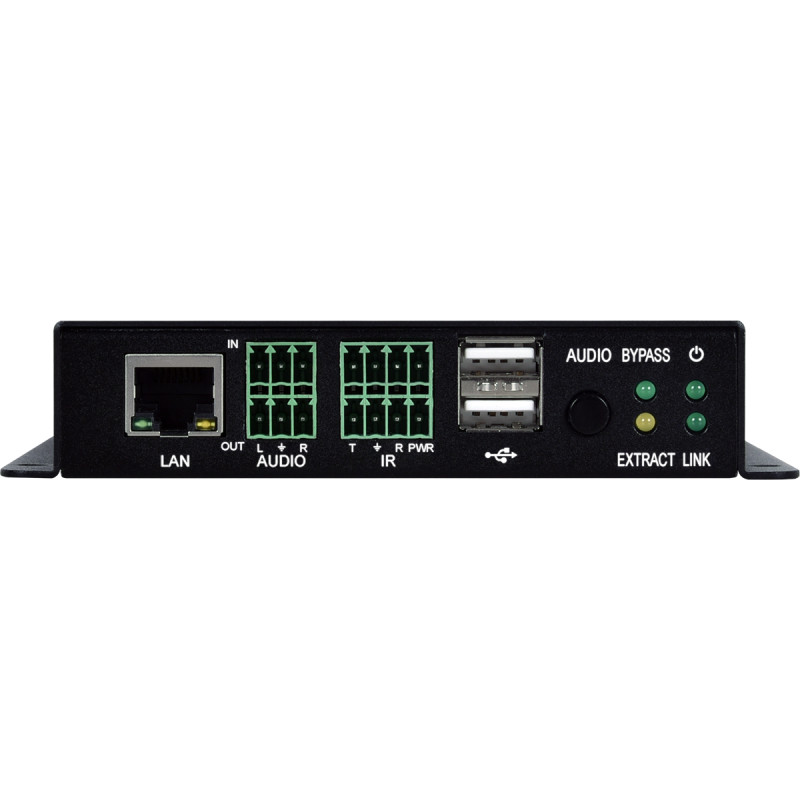

Pass-through Port | 1x Stereo Audio input and output (3-pin*2 Term. Block) 1×IR In/Out and RS-232 (4-pin*2 Term. Block) 2×USB 2.0 (Type A) 1xLAN (RJ-45) |
Pass-through/Control Port | 1×USB 2.0 (Micro USB) |
Video | ||
HDMI Compliance | HDMI 2.0 | |
HDCP Compliance | HDCP 2.2 | |
Input Signal Type | HDMI 4K@60 8bit RGB 4:4:4 HDBT 4K@60 8bit RGB 4:4:4 | |
Output Signal Type | HDMI 4K@60 8bit RGB 4:4:4 HDBT 4K@60 8bit RGB 4:4:4 | |
Resolutions | ||
Maximum Input | HDMI | 4096×2160p@60 |
HDBT | 4096×2160p@60 | |
Maximum Output | HDMI | 4096×2160p@60 |
HDBT | 4096×2160p@60 | |
Audio | |
HDMI | LPCM (8 Channels), Bitstream, HD Bitstream |
HDBT | LPCM (8 Channels), Bitstream, HD Bitstream |
Analog Out | 2 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS) |
Power | |
Power Supply | 24V/2.7A DC |
Power Consumption | 12W |
Enclosure | |
Chassis Material | Metal(Steel) |
Chassis Color | Black |
Dimensions (W×H×D) | 128mm×25mm×108mm [Case Only] 128mm×25mm×112.5mm [All Inclusive] |
Weight | 400g |
Field Firmware Update | |
USB stick Update |
ORDERING INFORMATION | |
Model No. | Product Description |

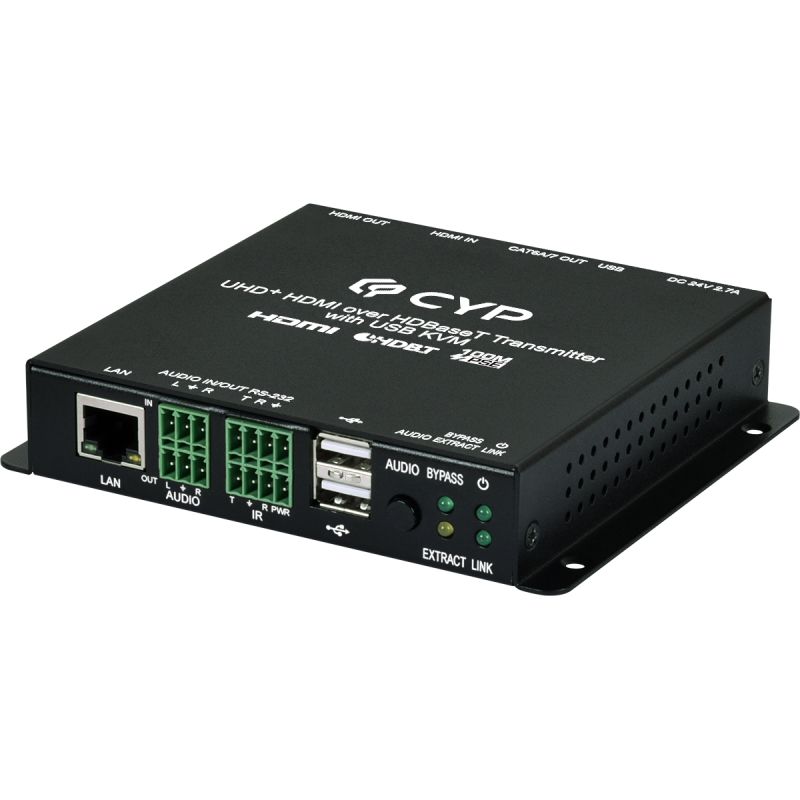

VEX-E4501T | UHD+ HDMI over HDBaseT Transmitter with USB KVM |
VEX-E4501R | UHD+ HDMI over HDBaseT Receiver with USB KVM |
VEX-E4701TR | UHD+ HDMI over HDBaseT Transceiver with USB KVM |
