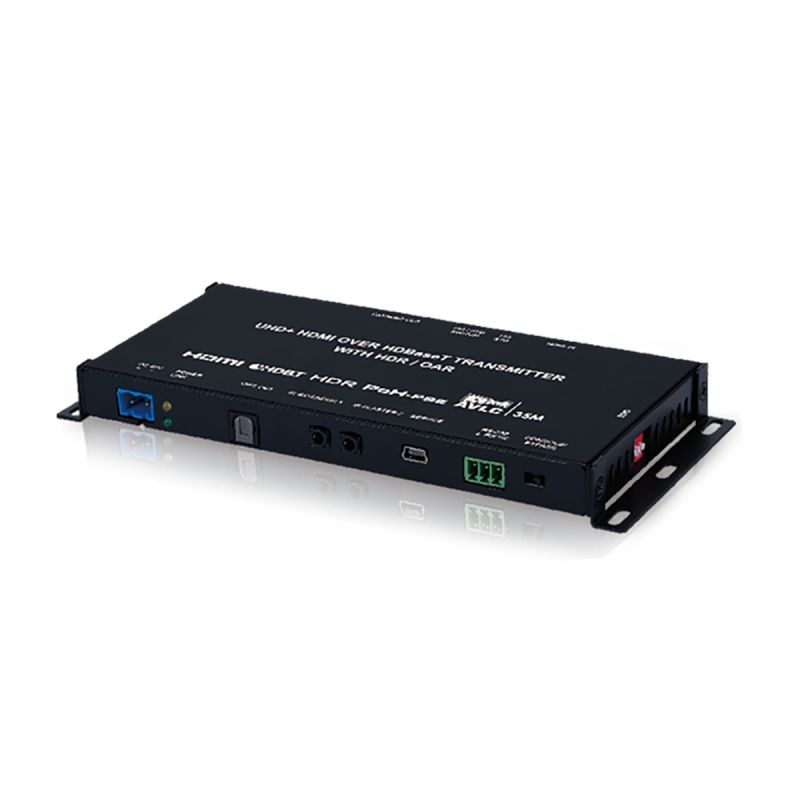

UHD+ HDMI over HDBaseT Transmitter with HDR/ OAR (4K@60 444 up to 35M) - Cypress CH-1529TXPLV

UHD+ HDMI over HDBaseT Transmitter with HDR/ OAR (4K@60 444 up to 35M) - Cypress CH-1529TXPLV

Artikelnummer: CH-1529TXPLV
HAN: CH-1529TXPLV
Kategorie: Extenders
Hersteller: Cypress Technology

This HDMI over single Cat.5e/6/7 Transmitter is a great solution for extending HD audio and video as well as Ethernet and contro ...

400,39 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

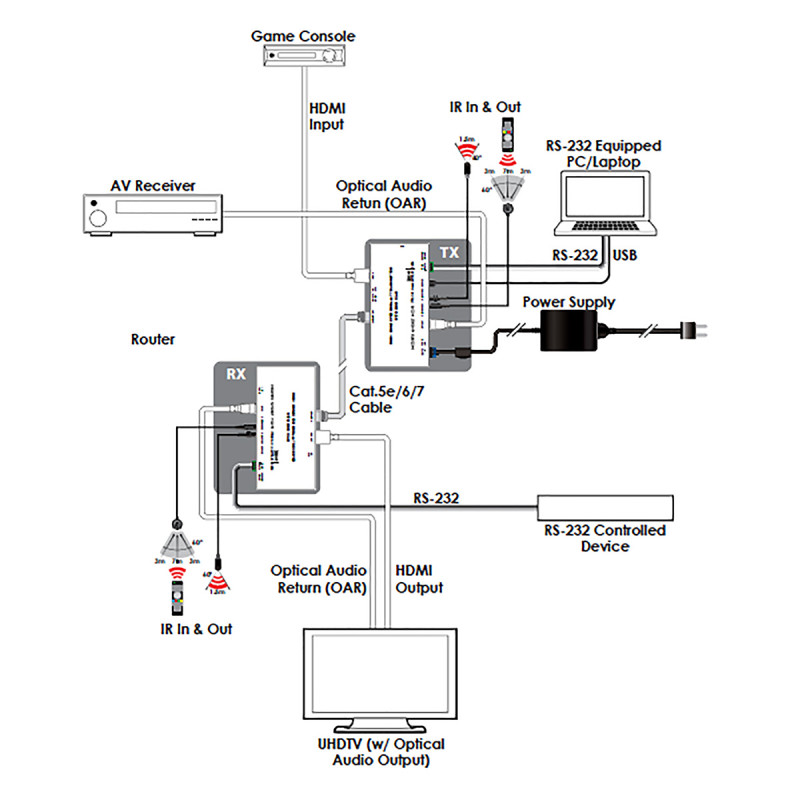

This HDMI over single Cat.5e/6/7 Transmitter is a great solution for extending HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 70 meters. Multiple data and control interfaces are provided, including IR and RS-232 connections. This Transmitter complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. Despite HDBaseT’s 10.Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when connected to a compatible AVLC Receiver. Beyond video, data, and control this unit also contains useful audio features. The Optical Audio Return (OAR) feature supports transmitting optical audio back from a compatible Receiver for local playback. Rounding out the feature set is robust EDID management as well as utomatic HDBaseT clock stretching and TMDS re-clocking support. This Transmitter (PSE) can provide 48V PoH (Power over HDBaseT) to a compatible Receiver (PD), allowing for greater flexibility within different installation scenarios.

HDMI with HDR, 3D & 4K@60Hz support
Supports Deep Color input and output up to 12-bit, CEC bypass
Simultaneous transmission of uncompressed video, audio and data over a single Cat.5e/6/7 cable up to 70m/230ft at 1080p60 and 35m/115ft at 4K
HDBaseT feature support: HD Video and Audio, 48V PoH, and Control (bidirectional IR/RS-232 pass-through)
Integrated AVLC (Adaptive Visually Lossless Compression) activates when the bandwidth requirements of the source are beyond 10.2Gbps (340MHz) allowing for sources up to 18Gbps (600MHz) to be sent to a compatible Receiver with no loss of visual quality
The AVLC feature allows manual selection between High Quality Mode (Full bandwidth) and Standard Mode (Lower bandwidth, useful for longer cable runs with 4K sources)
Supports the Optical Audio Return (OAR) function to transmit optical audio from a compatible Receiver to the Transmitter
Comprehensive EDID management support including 6 pre-defined EDIDs, 9 user EDIDs and an EDID bypass mode
PC-based EDID management software allows for the uploading of customized user EDIDs via USB
Supports HDMI DDC bus clock stretching for improved compatibility with certain Blu-ray players
Performs TMDS re-clocking and signal re-generation for improved signal integrity
Ultra-thin wall plate design (16mm thickness) for convenient installation
Supports standard 48V PoH from Transmitter (PSE) to Receiver (PD) (compatible Receivers only)

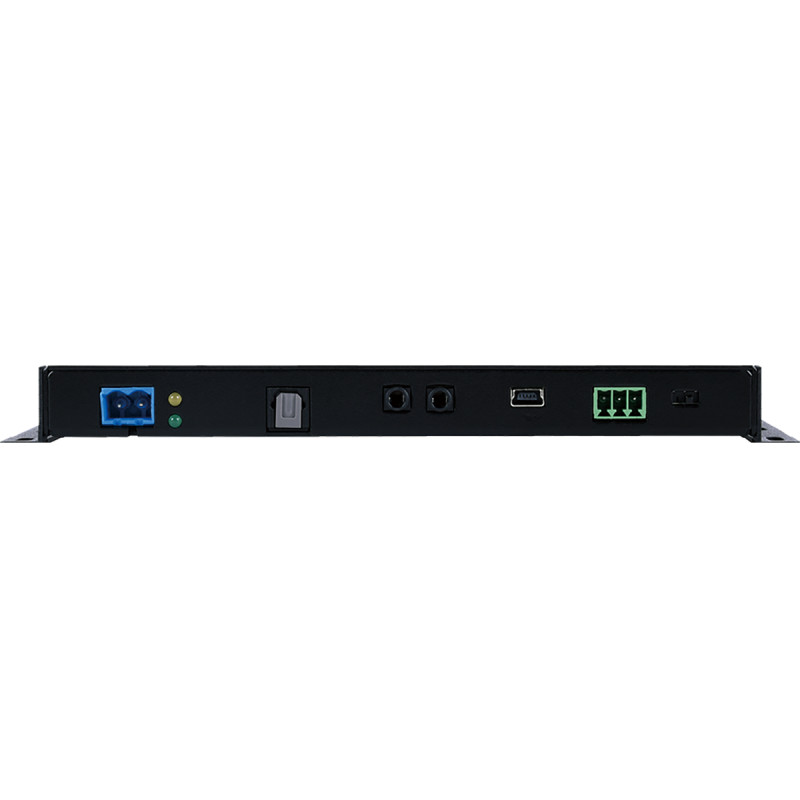

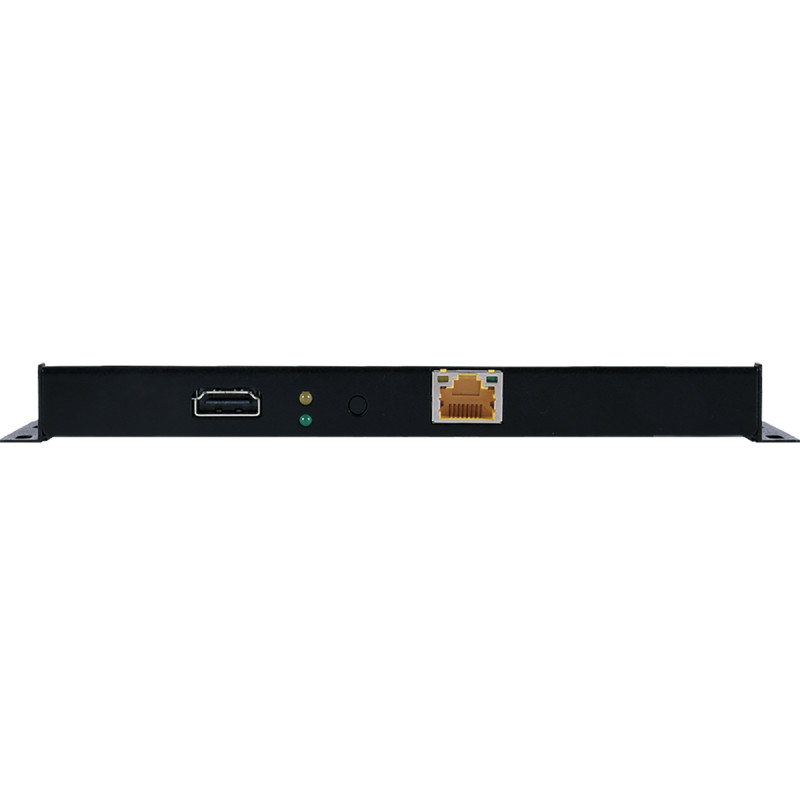

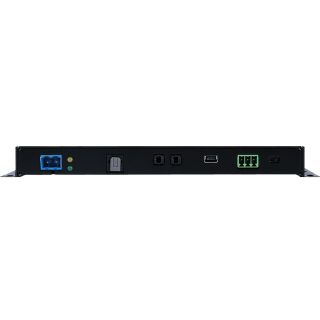

Interfaces
Input Port	HDMI (Type-A)
Output Port	1×HDBaseT (RJ45) 1×S/PDIF (TOSLINK)
Control I/O	1×USB (Mini-B)
Pass-through Port	1×IR Extender (3.5mm) 1×IR Blaster (3.5mm)
Pass-through/ Control Port	1×RS-232 (3-pin Terminal Block)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4K@60 8bit YUV 4:4:4, HDR
Output Signal Type	4K@60 8bit YUV 4:4:4, HDR

Resolutions
Maximum Output	HDMI	4096×2160p@60
Maximum Input	HDBaseT	4096×2160p@60

Power
Power Supply	48V/0.83A DC (US/EU standards, CE/ FCC/UL certified)
Power Consumption	7W/14W (PoH)

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	163mm×16mm×78mm [Case Only] 183mm×16mm×81mm [All Inclusive]
Weight	200g

Field Firmware Update
Interface	USB Flash Drive

Ordering Information
Model No.	Product Description
CH-1529TXPLV	UHD+ HDMI over HDBaseT Transmitter with HDR/OAR
CH-1529RXPLV	UHD+ HDMI over HDBaseT Receiver with HDR/OAR
