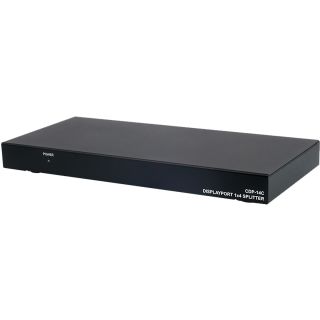

1 by 4 Display Port Splitter - Cypress CDP-14C

1 by 4 Display Port Splitter - Cypress CDP-14C

Artikelnummer: CYP-CDP-14C
HAN: CDP-14C
Kategorie: Splitters
Hersteller: Cypress Technology

The DisplayPort (DP) 1 by 4 splitter allows single DP source to be display on four DP input monitors simultaneously. It supports ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

The DisplayPort (DP) 1 by 4 splitter allows single DP source to be display on four DP input monitors simultaneously. It supports video resolution up to 2560 x 1600 and audio up to PCM 7.1 switch provides a fast switch between source and display and save EDID’s reading sink time to allow image display properly. The DP 1 by 4 splitter is an ideal device for your DP source to multi display

Supports DisplayPort specification V1.1a
Deep color video up to 12bit, resolution support up to 2560 x 1600
Supports audio up to PCM 7.1(32-192kHz Fs sample rate)
Supports pixel component formate with RGB; YCbCr 422; YCbCr 444
Color sapce conversion between RGB and YCbCr color space
Supports 1.62/2.7 Gbps data rate (Low/High bit rate)
Supports flexible 1/2/4 lanes configurations; Full 10.8Gbps data ratesupport (4lanes at 2.7Gbps)
Supports EDID switch and setting Note: This device supports only DisplayPort mode, it cannot connect DP to HDMI level shift convert.

Interfaces
Input Port	1 Displayport
Output Port	4 x DisplayPort

Video
HDCP Compliance	HDCP 1.3
Input Signal Types	2560 x 1600(Reduced Blank) 60Hz
Output Signal Type	2560 x 1600(Reduced Blank) 60Hz

Resolutions
Maximum Input	Displayport	2560 x 1600(Reduced Blank) 60Hz
Maximum Output	Displayport	2560 x 1600(Reduced Blank) 60Hz

Power
Power Supply	5V / 3A DC
Power Consumption	7W

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	270 mm x 29 mm x 124.5 mm
Weight	770g

Ordering Information
Model No.	Product Description
CDP-14C	1 by 4 Display Port Splitter
