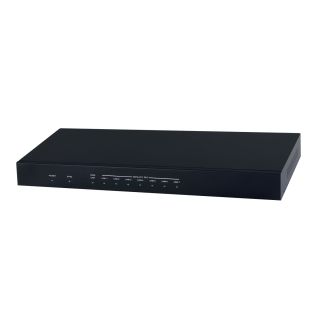

The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single
HDMI input and 2-way IR control up to seven CAT5e/6/7 outputs and includes a
simultaneous HDMI bypass output. It supports resolutions up to 4K×2K timing,
3D and multi-channel digital audio formats (such as LPCM 7.1CH, Bitstream,
HD Bitstream). The HDMI bypass output can be connected to an HDMI display
or cascaded to another splitter. The CAT5e/6/7 outputs can be connected to
HDBaseT to HDMI Receivers to extend the operating distance up to 70 meters
with Power Over Cable feature.
- Simultaneous HDMI and CAT5e/6/7 outputs
- Supports data rate from 250Mbps up to 3Gbps
- Supports up to 4096x2160@60Hz YUV 4:2:0 8bit
- Supports LPCM 7.1CH, Bitstream, HD Bitstream transmission (32-192kHz
sample rate)
- Supports selection of Standard or TV EDID settings
- Supports Power over Cable (PoC) feature
- Supports Bidirectional IR control
- The 3D signal display follow by display TV?s EDID
| Interfaces | |
|---|
| Input Port | |
| Output Port | - 1 HDMI (Type-A)
- 7 HDBaseT(RJ-45)
|
| Pass-through Port | - 1 IR IN (3.5mm)
- 1 IR OUT (3.5mm)
|
| Service Port | |
| Video | |
|---|
| HDMI Compliance | |
| HDCP Compliance | |
| Input Signal Types | - 4096x2160@60Hz YUV 4:2:0 8bit
|
| Output Signal Type | - 4096x2160@60Hz YUV 4:2:0 8bit
|
| Resolutions | | |
|---|
| Maximum Input | HDMI | |
| Maximum Output | HDMI | |
| | HDBaseT | |
| Power | |
|---|
| Power Supply | |
| Power Consumption | |
| Enclosure | |
|---|
| Chassis Material | |
| Chassis Color | |
| Dimensions (W×H×D) | - 432mm x 44 mm x 174 mm [Case Only]
- 432mm x 44 mm x 179 mm [All Inclusive]
|
| Weight | |
| Field Firmware Update | |
|---|
| Interface | |
| Ordering Information | |
|---|
| Model No. | Product Description |
| CHDBT-1H7CPL | - 1 by 8 HDMI over HDMI & CAT5e/6/7 Splitter
|
