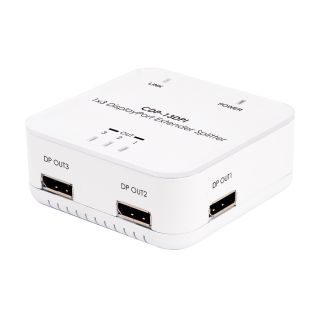

1×3 DisplayPort Splitter - Cypress CDP-13DPI

1×3 DisplayPort Splitter - Cypress CDP-13DPI

Artikelnummer: CDP-13DPI
HAN: CDP-13DPI
Kategorie: Splitters
Hersteller: Cypress Technology

For those who want to display large content the 1x3 DisplayPort Extender Splitter is for you. Able to extend an image onto 2 or ...

205,91 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

For those who want to display large content the 1x3 DisplayPort Extender Splitter is for you. Able to extend an image onto 2 or 3 displays, this device is perfect for multi-tasking, but can also split an image so the same image is repeated on up to three connected displays. This 1 by 3 DisplayPort Extender Splitter allows users to enjoy images or video in HD resolution up to 1920 x 1200 on multiple monitors from a single digital output port. The 1 by 3 DisplayPort Extender Splitter is a useful device for extending displays and splitting images.

Supports DisplayPort v1.1a, VESA DDM Standard, HDCP v1.3 and EDID v1.4
Supports link rates of 2.7Gbps (HBR) and 1.62Gbps (RBR) from the source
Fully HD compatible and provides full display performance with zero lag and no display application limitations
Does not require software updates
Quality Lab (WHQL) testing/qualification
Supports output resolutions up to 1920x1200
Works with any desktop and notebook computer which have a DisplayPort output port
Provides exceptional Secured Content Protection with HDCP 1.3 for digital content including video and audio
Plug and Play

Output Resolution	1920 x 1200 / 1920 x 1024
Input port	1 x DisplayPort
Output ports	3 x DisplayPort
Power Supply	3.3V / 1.5A DC (US/EU standards, CE/FCC/UL certified)
ESD Protection	Human body model: ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Dimensions(mm)	100 (W) x 70 (D) x 20 (H)
Weight(g)	90
Chassis Material	Plastic
Silkscreen Color	White
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C~60°C / -4°F ~ 140°F
Relative Humidity	20~90% RH (non-condensing)
Power Consumption	3W
