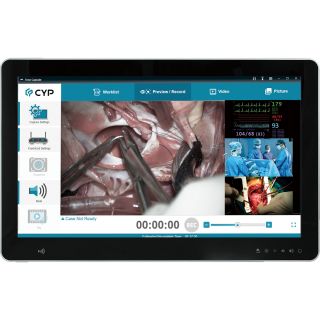

The MED-PPS-2138 is a medical grade compatible All-in-one panel PC with audiovisual module cards for video in/out expansion. It is integrated with CYP signal diversified module for various audiovisual applications. Images can be captured in via SDM input cards, being processed by software on the PC, and afterwards output via SDM Tx cards. Available functions like routing to/from hospital video control center (AVoIP infrastructure), long distance transmission (HDBaseT extension), live streaming to the cloud for educational purpose, UVC capturing to other PC for online meetings and also just simply SDI interface conversion for medical devices. It performs best when being connected to AVoIP network which enables unlimited possibilities for multi-imaging distribution, and unifies the transmission interface to internet protocol. This structural concept is also applicable to other system-based products and/or displays.

21.5” FHD display with PCAP multi-touch
Ultra-slim design
Low profile PCIe expansion
Front panel IP65
Optional NFC/ webcam/ barcode/ handset/ WIFI
Optional module cards for HDBT/ SDVoE/ Streaming and more functions

System Information
SBC	MED-PPS-2138 mother board
TPM	Onboard NuvoTon NPCT754AABYX support TPM 2.0
H/W Status Monitor	CPU temperature monitoring System temperature monitoring VCORE voltage monitoring VIN voltage monitoring
Watchdog Timer	H/W reset, 1sec. – 65535sec./min.1sec. or 1min. step
I/O Chipset	IT8528E
Processor	11th Generation Intel® Core™ i7/i5/i3/Celeron Processor
System Memory	Two 260-pin DDR4 3200 MHz SO-DIMM socket, supports up to 64GB max
Platform Controller Hub	Integrated in processor (SOC)
Other	Dual LED reading light bar I/O cover Optional handset & 1D barcode scanner

Expansion

1 x M.2 for 4G/5G

1 x CYP Input SDM Slot

1 x CYP Output SDM Slot

Storage
Storage	1 x M.2 storage

Audio
Audio Codec	Realtek ALC888S
Speaker Output	2 x 2W

Ethernet
LAN Chipset	1 x Intel® I219LM 1 x Intel® I225LM or I226LM
Ethernet Interface	10/100/1000/2500 Base-Tx GbE compatible

Software Support
OS	Win10 / Win11 / Linux

I/O
USB Port	2 x USB 2.0 2 x USB type C (USB 3.1/display/PD 3.0 15V)
LAN Port	2 x RJ-45
COM Port	1 (optional)
SATA	1 x SATA III

Panel
Pixel Pitch	0.24795 (H) x 0.24795 (V)
Viewing Angle	89 (U), 89 (D), 89 (L), 89 (R)
Response Time	22 ms
Backlight	LED
Touch Type	Projective capacitive multi-touch up to 10 points
Touch Light Transmission	86%
Touch Controller	USB touch (EETI EXC3188)
LCD Size	21.5”
Display Type	Full HD
Resolution	1920 x 1080
Contrast Ratio	1000
Luminance	250 cd/m2

Mechanical & Environmental
Construction - Front	White plastic
Construction - Rear	White plastic
Weight	6 kg
Storage Temp.	-30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity	0% ~ 90% relative humidity, non-condensing
Dimension (W x L x H)	539.6 x 342.6 x 77.0 mm
Operating Temp.	0°C ~ 40°C (32°F ~ 104°F)
System Fan	Fanless
Vibration Test	With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis
Shock Test	With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms
IP Rating	Front IP65
Fanless	Yes
Color	White
Finishing	Anti-microbial

Certification

Information

CE : IEC/EN60601-1-2 Compliant

FCC : Part 15 class B Compliant

UL60601-1 Compliant

Power Requirement
Power Mode	AT/ATX (ATX is default setting)
DC Input Connector	Lockable DC Jack
DC Input	+12V ~ +19V

Component

Adapter

Medical grade

Input: 100~240 Vac/50~60Hz;

Output: 90W adapter (19V/4.74A adapter)

Optional Module Cards for Expansion

Model Name	Main Function	Max. Resolution	USB	Features

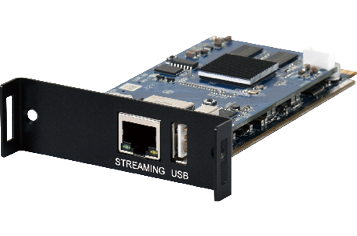

Output (Tx) Modules	SDM-S100E	FHD Streaming	1080p60	USB 2.0 storage	- Live stream to cloud - Local store to USB - Recording scheduling
	SDM-S301E	4K Streaming	4K60 (4:4:4)	USB 2.0 storage
	SDM-U320C	USB Capture	4K30 (4:2:0)	USB 3.2 Gen1	- UVC to PC capture
	SDM-E201T	HDBaseT 1.0 Tx	4K60 (4:2:0)	–	- P2P extension
	SDM-I301HS	SDI Output	4K60 (4:2:2)	–	- SDI out conversion
In/Out (TR) Modules	SDM-E301TR	HDBaseT 3.0 TR	4K60 (4:4:4)	–	- P2P Extension
	SDM-P301TR-C	SDVoE over copper	4K60 (4:4:4)	–	- AVoIP - Multi-view - Video wall - KVM - F/W update
	SDM-P301TR-F	SDVoE over fiber	4K60 (4:4:4)	–	- AVoIP - Multi-view - Video wall - KVM - F/W update
Input (Rx) Modules	SDM-I301SH	SDI Input	4K60 (4:2:2)	–	- SDI in conversion
	SDM-E201R	HDBaseT 1.0 Rx	4K60 (4:2:0)	–	- P2P extension
	SDM-W201R	Wireless Rx	4K30	USB 3.0	- Wireless Rx - Remote view - Up to 4 multi-view
