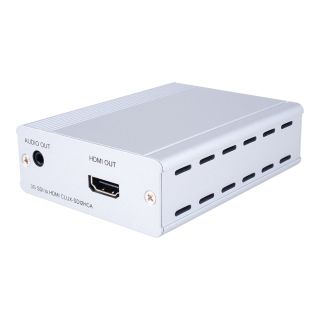

3G SDI to HDMI Converter - Cypress CLUX-SDI2HCA

3G SDI to HDMI Converter - Cypress CLUX-SDI2HCA

Artikelnummer: CYP-CLUX-SDI2HCA
HAN: CLUX-SDI2HCA
Kategorie: Format Converters
Hersteller: Cypress Technology

This unit allows SD, HD and 3G-SDI signals to be shown on HDMI display. This means that it is now easier for professionals to di ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

This unit allows SD, HD and 3G-SDI signals to be shown on HDMI display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on HDMI displays. In addition, the external audio output allows the user to send the audio signal originally embedded in the SDI input to an amplifier or active speakers.

Shows SDI source on HDMI display
Auto-detects SD-SDI, HD-SDI and 3G-SDI input signals
Supports SDI bitrates of 2.970Gbit/s & 2.970/1.001Gbit/s, 1.485Gbit/s & 1.485/1.001Gbit/s, and 270Mb/s:
- 3G-SDI supports SMPTE 424M/425M-A@2.970Gbit/s & 2.970/1.001Gbit/s
- HD-SDI supports SMPTE 292M@1.485Gbit/s & 1.485/1.001Gbit/s
- SD-SDI supports SMPTE 259M-C@270Mbit/s
Converts SDI format to HDMI:
- 3G-SDI (SMPTE 424M/425M-A) to 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080PsF@23.98/24/25/29.97/30Hz
- HD-SDI (SMPTE 292M) to 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz
- SD-SDI (SMPTE 259M-C) to 480i/576i
Supports SDI input distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

Video Bandwidth	225 MHz/6.75 Gbps
Input	1×BNC (SD/HD/3G-SDI)
Output	1×HDMI, 1×3.5 mm Phone Jack
SDI Timing Support	SD-SDI: SMPTE 259M-C, 270 Mbit/s HD-SDI: SMPTE 292M, 1.485 & 1.485/1.001 Gbit/s 3G-SDI: SMPTE 424M/425M-AB, 2.970 & 2.970/1.001 Gbit/s
HDMI Timing Support	480i/576i, 720p@50/59.94/60 1080i@50/59.94/60 1080p@23.98/24/25/29.97/30/50/59.94/60
Audio Output Support	HDMI: PCM 2/5.1/7.1 CH 3.5 mm Analog: 2 CH
ESD Protection	Human-body Model: ±8 kV (Air-gap discharge) ±4 kV (Contact discharge)
Power Supply	5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified)
SDI Cable Distance	3G/HD/SD-SDI up to 100/200/300 meters with BELDEN 1694A cable
Dimensions	78.5 mm (W)×124 mm (D)×30 mm (H)
Weight	202 g
Chassis Material	Aluminum
Silkscreen Color	Silver
Operating Temperature	0 ºC~40 ºC/32 ºF~104 ºF
Storage Temperature	−0 ºC~60 ºC/− ºF~140 ºF
Relative Humidity	20~90 % RH (non-condensing)
Power Consumption	3.4 W
