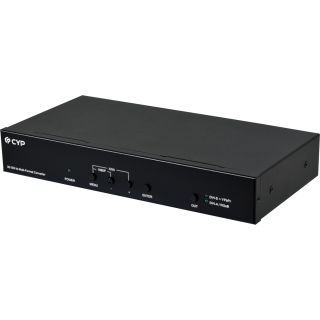

3G SDI to Multi-Format Converter - Cypress CSC-5302

3G SDI to Multi-Format Converter - Cypress CSC-5302

Artikelnummer: CSC-5302
HAN: CSC-5302
Kategorie: Format Converters
Hersteller: Cypress Technology

The 3G SDI to Multi-Format Converter converts high quality 3G SDI signal to DVI-I and component digital signals without compress ...

548,22 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

The 3G SDI to Multi-Format Converter converts high quality 3G SDI signal to DVI-I and component digital signals without compression. Moreover, the user can monitor the image via local loopback port. There are various outputs for the user to select from the front panel. It also can cascade with compatible units. This converter provides a stable timing of PC and HDTV. Supports resolutions up to 1080p.

• 3G-SDI input to 3G-SDI, DVI-I, YPbPr/RGB output

• Supports SDI standard SMPTE

- SD-SDI : SMPTE 259M-C, up to 270 Mbps

- HD-SDI : SMPTE 292M, up to 1.485 Gbps

- 3G-SDI : SMPTE 424M, SMPTE 425M level A , up to 2.97 Gbps

• Supports SDI signal be sent to loopback port without conversion

Interfaces
Input Port	1 3G SDI (BNC)
Output Port	1 3G SDI (BNC) 1 DVI-I (Dual Link) 1 YPbPr (RCA) 1 L/R (RCA)
Control I/O	1 USB2.0 (Micro-B) 1 RS-232 (D-sub)

Video
Input Signal Type	1080p60
Output Signal Type	1080p60
		Resolutions
Maximum Input	3G SDI	1080p60
Maximum Output	DVI-I	1080p60 / 1920x1200 @ 60RB

Power
Power Supply	5V/2.6A
Power Consumption	3.1 W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	140mmx43mmx280mm [Case Only] 158mmx48mmx280mm [All Inclusive]
Weight	1300g

Field Firmware Update
USB

ORDERING INFORMATION
Model No.	Product Description
CSC-5302	3G SDI to Multi-Format Converter
CSC-5301	Multi-Format to 3G SDI Converter
