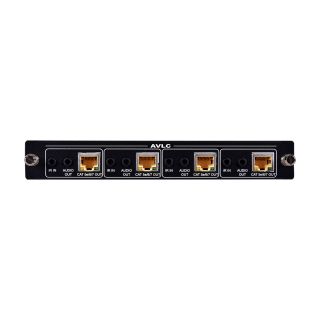

4-Port HDBT with AVLC Output Card - Cypress COUT-V4CV
This 4-port HDBT output Card provides 4 independent high-bandwidth HDBT
outputs, paired with IR input and analog stereo outputs. Any available input
on the connected modular matrix can be freely routed to each output of the
card. Despite HDBaseT?s 10.2Gbps bandwidth limitation, each port is able
to supports up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit
sources with HDR to be received and processed by the use of AVLC (Adaptive
Visually Lossless Compression) when connected to a compatible AVLC
Transmitter.
- 4 HDBT output ports paired with IR output and analog stereo output ports
- Supports 4K HDR at 24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12- bit color
- Supports 12-bit Deep Color up to 1080p@60Hz
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1 Bitstream, and HD Bitstream
- This card?s features are controlled by the modular matrix
Interfaces | |
Input Port | 4 HDBT (RJ-45) 4 Optical audio |
Control I/O | 4 IR Extender (3.5mm) |
Video | ||
HDBT Compliance | HDBT 4K@60 | |
HDCP Compliance | 2.x | |
Input Signal Type | 4096x2160p@60 8bit YUV 4:4:4 | |
Resolutions | ||
Maximum Input | HDBT | 4096×2160p@60 YUV 4:4:4 |
Audio | |
HDBT | LPCM (8 Channels), Bitstream, High Bit Rate Bitstream |
Optical In | LPCM (8 Channels), Bitstream, High Bit Rate Bitstream |
Enclosure | |
Chassis Material | Metal (Steel) |
Chassis Color | Black |
Dimensions (W×H×D) | 187.4mm×29.1mm×344.9mm [Case Only] 197.5mm×29.1mm×364.6mm [All Inclusive] |
Weight | 458g |
ORDERING INFORMATION | |
Model No. | Product Description |
COUT-V4CV | 4-Port HDBT with AVLC Output Card |
CH-1605RXV | UHD+ HDMI over HDBaseT Receiver with HDR/ARC |
