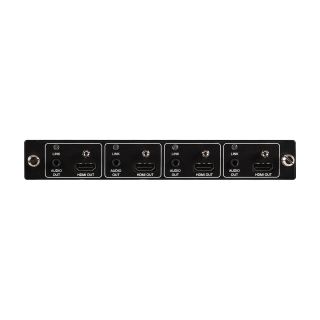

4-Port HDMI Output Card - Cypress COUT-V4HP
This 4-port HDMI Output Card provides 4 independent high-bandwidth HDMI
outputs, paired with analog stereo outputs. Each output can be freely routed
to from any available input on the connected modular matrix. Each HDMI port
supports up to 18Gbps allowing for resolutions up to 4K@60Hz with HDR and
high-bitrate digital audio. Optionally, analog stereo audio may be extracted
from the HDMI signal (LPCM 2.0 sources only).
- 4 HDMI output ports paired with analog stereo output ports
- Single-link DVI compatible with the use of an HDMI-DVI adapter
- HDCP 2.2 and HDCP 1.x compliant
- Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video
- Supports 10-bit and 12-bit HDR (High Dynamic Range) output
- Supports 12-bit Deep Color up to 1080p@60Hz
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
- Supports stereo audio extraction (LPCM 2.0 sources only)
- This card?s features are controlled by the modular matrix
Interfaces | |
Input Port | 4 HDMI 4 Analog Stereo (3.5mm) |
Pass-through Port | 4 IR Blasters (3.5mm) |
Video | ||
HDMI Compliance | 2.0 | |
HDCP Compliance | 2.x | |
Input Signal Type | 4096x2160p@60 8-bit YUV 4:4:4, HDR10 | |
Resolutions | ||
Maximum Input | HDMI | 4096×2160p@60 |
Audio | |
HDMI | LPCM (8 Channels), Bitstream, HD Bitstream |
Line Level | Frequency Response: < ±1dB (20Hz to 20kHz) THD: < 0.01% (20Hz to 20kHz) S/N Ratio: > 70dB (1kHz with 0dBFS) Crosstalk: < ?60dB (10kHz, Vin=0dBFS) |
Enclosure | |
Chassis Material | Metal (Steel) |
Chassis Color | Black |
Dimensions (W×H×D) | 187.4mm×29.1mm×344.9mm [Case Only] 197.5mm×29.1mm×364.6mm [All Inclusive] |
Weight | 458g |
