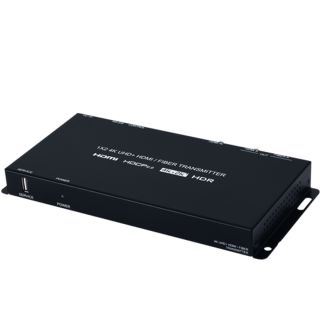

4K HDR HDMI over Fiber Transmitter - Cypress CPLUS-12FTX (EOL)

4K HDR HDMI over Fiber Transmitter - Cypress CPLUS-12FTX (EOL)

Artikelnummer: CPLUS-12FTX
HAN: CPLUS-12FTX
Kategorie: Extenders
Hersteller: Cypress Technology

This HDMI over Fiber Transmitter is designed to extend your 4K UHD HDMI signal using a single segment of multi-mode optical fibe ...

683,74 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This HDMI over Fiber Transmitter is designed to extend your 4K UHD HDMI signal using a single segment of multi-mode optical fiber cable. Using fiber optical cable provides many advantages over traditional copper-based extension methods, including immunity to RF and magnetic interference, thinner and lighter cables, and much longer extension distances (up to 300 meters per segment). Multiple fiber Transceiver units can be placed between the Transmitter and Receiver to greatly extend the total extension distance via cascading (up to 300 additional meters per Transceiver) if the extra distance or flexibility is desired.

The HDMI input and output of this unit supports resolutions up to 4K@60Hz (4:4:4, 8-bit), 10/12-bit HDR, 16-bit Deep Color up to 1080p@60Hz, HD audio formats and other features defined by the HDMI 2.0 specification. The HDMI and Fiber outputs of this unit are mirrored, however HDMI sources with bandwidth higher than 10.2Gbps are automatically chroma and/or bitdepth subsampled for transmission over the fiber output. Six pre-defined internal EDIDs, two external EDID selections and a User uploaded EDID are available for EDID management. The unit provides intuitive front

HDMI with 3D & 4K@60Hz with HDR support
DVI 1.0 compliant with the use of an HDMI-DVI adaptor
HDCP 2.2 and 1.x compliant
1 HDMI (18Gbps) input
Mirrored HDMI (18Gbps) and fiber (10.2Gbps, LC pair, multimode) outputs
Supports UHD resolutions up to 4K@60Hz (4:4:4, 8-bit )
Supports 16-bit Deep Color up to 1080p@60Hz
HDMI sources with bandwidth higher than 10.2Gbps are automatically chroma and/or bit-depth subsampled for transmission over the fiber output
Supports pass-through of audio formats: LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
Comprehensive EDID management support including 6 pre-defined internal EDIDs, 2 external EDIDs, and 1 User uploaded EDID
Compatible with the 3×2 HDMI and Fiber Matrix Transceiver (optional)
Fiber transmission distances of up to 300 meters
Supports control via front panel, WebGUI, Telnet, and RS-232

HDMI Bandwidth	600MHz/18Gbps
Fiber Bandwidth	340MHz/10.2Gbps
Input Port	1×HDMI
Output Ports	1×HDMI 1×Fiber (Paired LC)
Control Ports	1×RS-232 (3.5mm) 1×IP Control (RJ45)
Baud Rate	Up to 115200bps
Power Supply	5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
ESD Protection (HBM)	±8kV (Air Discharge) ±4kV (Contact Discharge)
Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×117mm [All Inclusive]
Weight	670g
Chassis Material	Metal
Sillkscreen Color	Black
Operating Temperature	0 ˚C–40 ˚C/32 ˚F–104 ˚F
Storage Temperature	-20 ˚C–60 ˚C/-4 ˚F–140 ˚F
Relative Humidity	20–90% RH (Non-condensing)
Powe Consumption	7.19W
