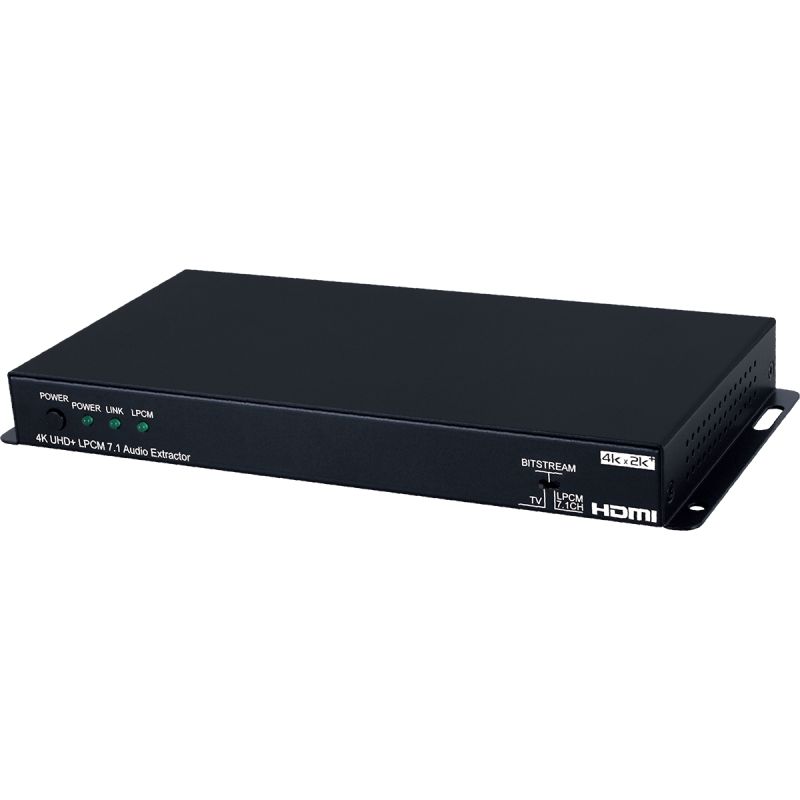

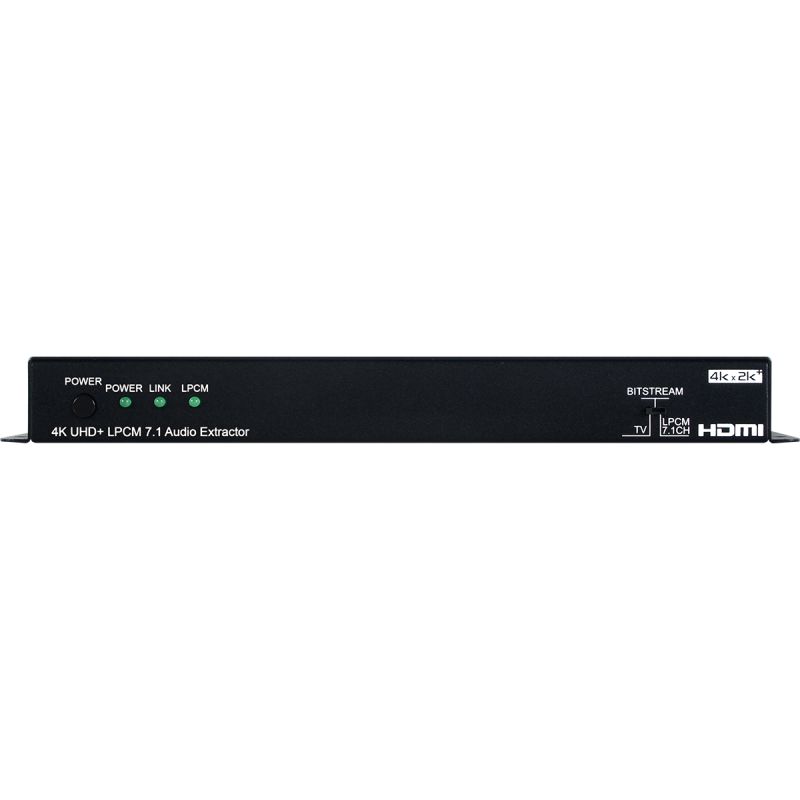

4K UHD+ HDMI Audio Extractor - Cypress CPLUS-V11PE8

Artikelnummer: CPLUS-V11PE8

Herstellernummer: CPLUS-V11PE8

This HDMI Audio Extractor can extract up to 8 channels of LPCM audio from an HDMI source, allowing the user to convert high qual ...

Kategorie: Extender

299,00 €

exkl. 19% USt. ,(Standard)

Muss bestellt werden. Ab Bestellung lieferbereit in 35 Tagen.

Lieferzeit: 36 - 38 Werktage


This HDMI Audio Extractor can extract up to 8 channels of LPCM audio from an HDMI source, allowing the user to convert high quality lossless HDMI audio into multi-channel analog signals for use with powered speakers or non-HDMI AV receivers. Bitstream extraction is also supported via an optical S/PDIF output.

Both the input and output HDMI ports support 4K UHD resolutions up to 4K@60Hz (4:4:4, 8-bit) and are capable of providing high quality audio and video performance. This unit supports passthrough of HD Bitstream audio formats, as well as standard Bitstream formats and LPCM 7.1 with audio sampling rates up to 192kHz. Built-in EDID management support allows the user select from multiple EDIDs and, with the use of optional PC software, to upload, download, or edit EDID files.

  • HDMI input and output with 18Gbps (600MHz) 4K UHD support
  • DVI 1.0 compatible with the use of an HDMI-DVI adaptor
  • HDCP 1.4 and 2.2 compliant
  • Supports HD resolutions up to 3840×2160@60 Hz (4:4:4, 8-bit) & 4096×2160@60 Hz (4:4:4, 8-bit)
  • Supports 48-bit Deep Color up to 1080p@60Hz
  • 2 slots for user-created EDIDs, and EDID bypass support
  • Supports CEC passthrough
  • Supports passthrough of LPCM 7.1, Bitstream and HD Bitstream audio formats over HDMI
  • Audio extraction of LPCM 7.1 sources to 8 channel analog output and S/PDIF (S/PDIF output is limited to 2 channel source support)
  • Audio extraction of Bitstream sources to S/PDIF output (analog output will be muted)
  • Supports HDMI and S/PDIF audio sampling rates up to 192kHz
  • Provides EDID management with EDID bypass and 2 user modifiable EDIDs
  • PC based EDID management tool support
  • Supports RS-232 style control via a Virtual COM port over USB

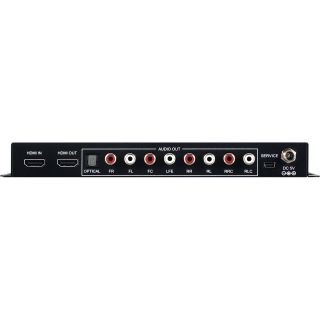

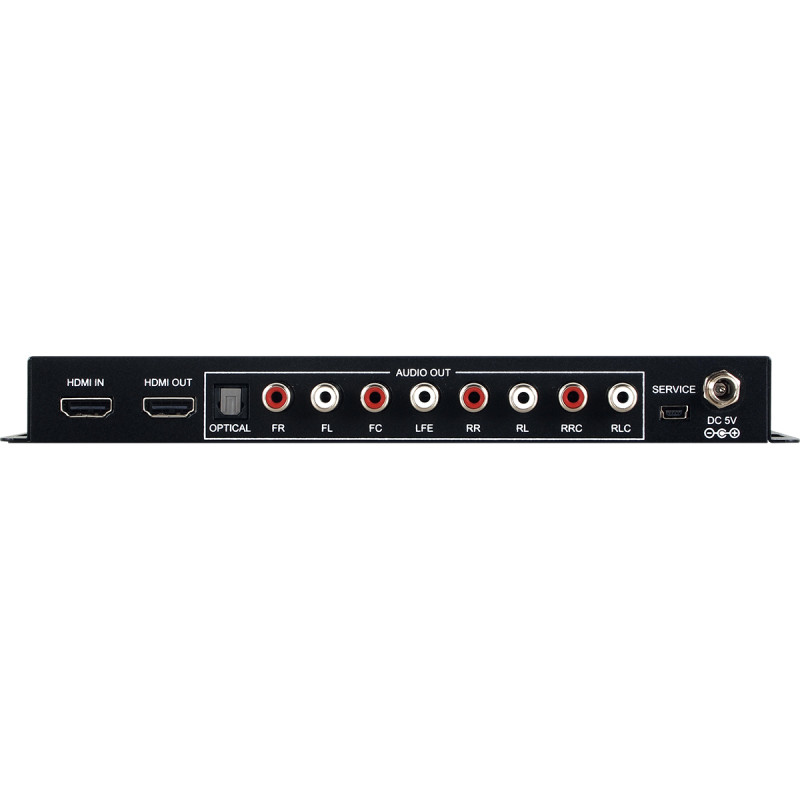

HDMI Bandwidth600MHz/18Gbps
Input Port1×HDMI
Output Ports1×HDMI
1×Optical (S/PDIF)
8×RCA (Multichannel)
Control Interface1×USB Mini-B
HDMI Cable Length10m (1080p@60Hz, 12-bit)
3m (4K@60Hz, 4:4:4, 8-bit)

Baud Rate

Up to 115200bps

Power Supply

5V/2.6A DC

ESD Protection

Human Body Model:
±8kV (Air Discharge)
±4kV (Contact Discharge)


231.5mm×25mm×108mm (W×H×D) [Case Only]
231.5mm×25mm×118mm (W×H×D) [All Inclusive]



Chassis Material


Silkscreen Color


Operating Temperature

0?C - 40?C/32?F - 104?F

Storage Temperature

?20?C - 60?C/?4?F - 140?F

Relative Humidity

20 - 90% RH (Non-condensing)

Power Consumption
