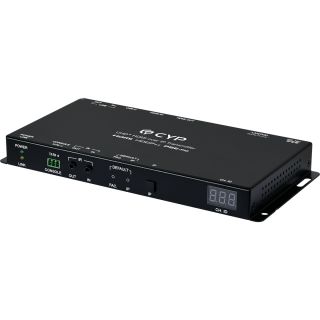

4K@60 HDMI over IP Transmitter - Cypress AVIP-A4601E-B1C

4K@60 HDMI over IP Transmitter - Cypress AVIP-A4601E-B1C

Artikelnummer: AVIP-A4601E-B1C
HAN: AVIP-A4601E-B1C
Kategorie: AV Over IP
Hersteller: Cypress Technology

This unit supports both Unicast and Multicast modes, enabling video wall and seamless collaboration across multiple windows in M ...

708,38 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This unit supports both Unicast and Multicast modes, enabling video wall and seamless collaboration across multiple windows in Multicast mode. It supports the transmission of Ultra High-Definition signals (up to 4K@60Hz RGB) with audio and USB 2.0 up to 100m on a single cable which allows connection of USB flash drives, keyboard, and mouse. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay. Moreover, it supports IP to IR and IP to RS-232, converting the IP signal into IR and RS-232 commands for device control.

When the extension system's units are in multicast mode, a single transmitter's AV signal can be sent to a large number of receivers within the same local network without the additional receivers causing the bandwidth requirements to increase. Additionally, that same multicast signal can be used to create large multi-display video walls with amazing simplicity. When combined with the optional IP Master Controller the functionality of the system expands exponentially. Its centralized web-based interface greatly simplifies control and management of large distributed video matrix or video wall systems adding to their flexibility in large home or commercial installations.

This system also features bi-directional IR and RS-232 pass-through, analog line level in/out, and a microphone input (on the receiver), providing the user with a variety of audio options. The USB functionality allows the system to act like a remote USB hub which, when combined with the HDMI input/output feature, provides a comprehensive USB over IP functionality platform. Configuration information is provided via On Screen Display (OSD) and control is by WebGUI, IP Master Controller, and Telnet.

The unit is with Dante Ready which can transmit digital audio channels upon activation and is compatible with any standard Dante audio transmitters/ receivers that the audio might be routed to. Dante Ready provides a flexible way to enable and expand the connectivity and interoperability of the world's de-facto AV-over-IP solution, even after the initial purchase. Upgrade your system with Dante and connect to over 4,000 products from 500 manufacturers. Dante Ready is built within the widely used Dante Controller application for Dante audio and video subscription management. Transactions are simple and secure, and device upgrades are seamlessly actioned without the need to enter complex license keys of copy license files.

4K@60 1Gbps AV over IP transmitter in Unicast or Multicast mode.
IP interface: RJ45
Supports comprehensive USB over IP functionality (USB flash drive, keyboard and mouse) and seamless collaboration across multiple windows
Supports PoE-PD (IEEE 802.3af).
Support IP to IR/ RS-232, converting the IP signal into IR and RS-232 commands for device control.
Controlled via WebGUI, IP Master Controller, and Telnet
1×HDMI input, 1×HDMI loopback output
Supports the use of an external control center (IP Master Controller) to provide expanded functionality (Contact your authorized dealer for more information)
Supports independent breakaway A/V and control matrix routing
Supports extension of many audio formats including 8 channel LPCM and standard Bitstream
The analog Line In is automatically embedded in the streaming output and can be independently routed to any receiver
Optional Dante Ready^TMis compatible with existing Dante and AES67 audio networks
Dante Ready brings Dante functionality to products already shipping and installed in sites
Channels and features can be added as an installation grows

Interfaces
Input Port	1×HDMI (Type-A) 1×Stereo Audio (3.5mm)
Output Port	1×HDMI (Type-A) 1×Stereo Audio (3.5mm)
Output/Control Port	1×GbE LAN (RJ-45)
Pass-through Port	1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×RS-232 (3-pin Terminal Block) 1×USB 2.0 (Type-C)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	HDCP2.2
Input Signal Type	4096x2160p@60 8bit RGB
Output Signal Type	4096x2160p@60 8bit RGB
		Resolutions
Maximum Input	HDMI	4096x2160p@60
Maximum Output	LAN(Streaming)	4096x2160p@60

Audio
Digital Format	HDMI	LPCM (8Channels), Bitstream, High Bit Rate Bitstream
	Line In/Out	LPCM (2 Channels)
Line Level	Line In	2 Vrms, S/N Ratio: > 80dB (1kHz with 0dBFS)
	Line Out	2 Vrms, S/N Ratio: > 80dB (1kHz with 0dBFS)

Power
Power Supply	PoE (802.3af) or 12V/1.25 A
Power Consumption	7.19W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×120mm [All Inclusive]
Weight	660g

Field Firmware Update
WebGUI

ORDERING INFORMATION

Model No.	Product Description
AVIP-A4601E-B1C	4K@60 HDMI over IP Transmitter
AVIP-A4601D-B1C	4K@60 HDMI over IP Receiver with USB 2.0
CDPS-CS11	4K@60 over 1G IP Master Control
