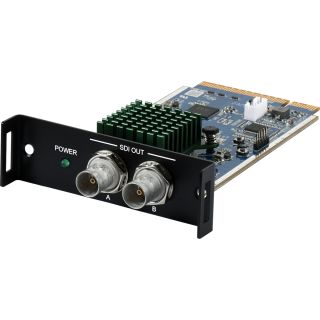

4K60 HDMI to 12G-SDI Transmitter Module - Cypress SDM-I301HS

4K60 HDMI to 12G-SDI Transmitter Module - Cypress SDM-I301HS

Artikelnummer: SDM-I301HS
HAN: SDM-I301HS
Kategorie: SDM
Hersteller: Cypress Technology

This 4K60 HDMI to 12G-SDI Transmitter Module allows HDMI signals up to 4K60 to be converted for use in native 12G-SDI video syst ...

542,06 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This 4K60 HDMI to 12G-SDI Transmitter Module allows HDMI signals up to 4K60 to be converted for use in native 12G-SDI video systems. This makes it easier for professionals to integrate and distribute non-HDCP HDMI signals from both consumer and prosumer video equipment, such as video cameras and laptops.

The module's design is compatible with a variety of products that have a standard CYP Module Slot, offering increased flexibility to customers.

2 mirrored 12G-SDI outputs
Supports up to 4K UHD+ (4K@50/60Hz 4:4:4, 8-bit) digital video input, and 4K@60 4:2:2 for output
SDI signal extension distance varies based on signal type: 70 meters (12G-SDI), 100 meters (6G-SDI), 200 meters (3G-SDI), or 260 meters (HD-SDI)
Note: Tested with a Belden 1694A SDI cable. Operating distances may vary if different specifications cables were used
SDI output supports the following SMPTE standards: ST 292-1 Level A, ST 425-1, ST 2081-10, ST 2082-10
The SDI output will be blocked in the case of HDCP content
Supports pass-through of LPCM audio (up to 8 channels) from the module input

Interfaces
Input Port	1x CYP Module (Edge Connector)
Output Port	2x 12G-SDI (BNC)

Video
HDMI Compliance	HDMI 2.0 (Edge Connector)
HDCP Compliance	2.2
Input Signal Type	4K@60 YUV 4:4:4
Output Signal Type	4K@60 YUV 4:2:2
		Resolutions
Maximum Input	HDMI (Edge Connector)	4096×2160p@60 YUV 4:4:4
Maximum Output	12G-SDI (BNC)	4096×2160p@60 YUV 4:2:2

Audio
HDMI	Bypass

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	128mm×25mm×75mm [Case Only] 128mm×25mm×75mm [All Inclusive]
Weight	92 g

Field Firmware Update
CSC-VPR-3421

ORDERING INFORMATION

Model No.	Product Description
SDM-I301HS	4K60 HDMI to 12G-SDI Transmitter Module
SDM-I301SH	4K60 12G-SDI to HDMI Receiver Module
CSC-VPR-3421	4K60 HDMI Multiview Processor with Multi-Function Extension Slot
CPLUS-V32SDM	4K60 Multi-format Matrix Switcher with USB Ethernet Hub
