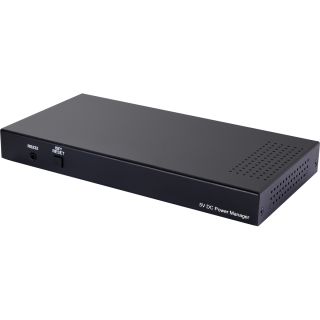

This 8-Port Managed 5V DC Power Supply is a DC power splitter which can
distribute up to 3 amps of 5 volt power to up to eight connected devices via
2-pin terminal block connections (120 watts total across all 8 outputs). Ideal
for professional applications, this unit provides direct per-port power control
via WebGUI, Telnet or RS-232. An integrated, battery backed-up, clock allows
for detailed power scheduling based on a repeating daily/weekly schedule, or
single events. Up to 2 fans may be connected and their speed can be either
automatically controlled based on a detected temperature, or set to a single
static speed. Detailed status information about the power input, each power
output, current fan speed, and system temperature is provided to give a
comprehensive system overview.
- Power management system providing voltage-controlled current (5V) on each output
- Battery backed up clock for scheduling power events
- Integrated WebGUI for control and power analysis
- Unit?s overall maximum power consumption is only 140 watts
- Supports 8 power output ports with professional 2-pin 3.5mm terminal block connectors
| Interfaces | |
|---|
| Input Port | - 8× 5V DC (2-pin Terminal Block)
- 2× Fan Out (4-pin Terminal Block)
|
| Output Port | - 1× RS232(3.5mm)
- 1× IP Control (RJ45)
|
| Power | |
|---|
| Power Supply | - 12V/12.5A DC (US/EU standards, CE/FCC/UL certified)
|
| Power Consumption | |
| Enclosure | |
|---|
| Chassis Material | |
| Chassis Color | |
| Dimensions (W×H×D) | - 211.5mm×24mm×108mm (W×H×D) [Case Only]
- 211.5mm×25mm×117.5mm (W×H×D) [All Inclusive]
|
| Weight | |
| Field Firmware Update | |
|---|
| Interface | |
| Ordering Information | |
|---|
| Model No. | Product Description |
| CSR-8PSU-5V | - 8-Port 5V DC Power Manager
|
