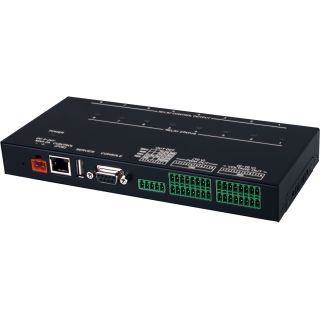

The Auxiliary Relay Control System is design for multi-purpose and multi-task trigger system usage. With 8 relays to trigger, 8 PWM (Pulse-Width Modulation) to set duty cycle, 8 voltage to set trigger voltage and 1 definition to control through command setting which supports RS-232/422/485 and DM512 that allows up to 25 devices connection for control. Device?s control interfaces like RS-232 and Telnet and PoE (PD) inside design leads user with completely friendly usage.
- Supports 8 Relays, 8 PWM, 8 Voltage and 1 Definition outputs ? Reply supports close, open and toggle controls with LED illuminators and power up to 30V/DC, 10A
- PWM support 10 volt with 0~100% duty cycle adjustable
- Voltage outputs supports from 0~10 volt with adjustment from 0~100% (0, 0.1, 0.2 ~10 volt)
- Definition output supports RS-232/422/485 with adjustable baud rate
- DMX-512 data transmission up to 250 Kbaud/s with unidirectional, serial transmission and daisy-chain configuration up to 512 nodes of max time 22ms (roughly 44Hz)
- RS-232/Console supports up to 256 bytes per command
- Supports 5V/2.6A ~ 24V/1.2A DC power supply
- Supports USB and WebGUI firmware update
- Supports RS-232 and Telnet controls
- Control port supports PoE function

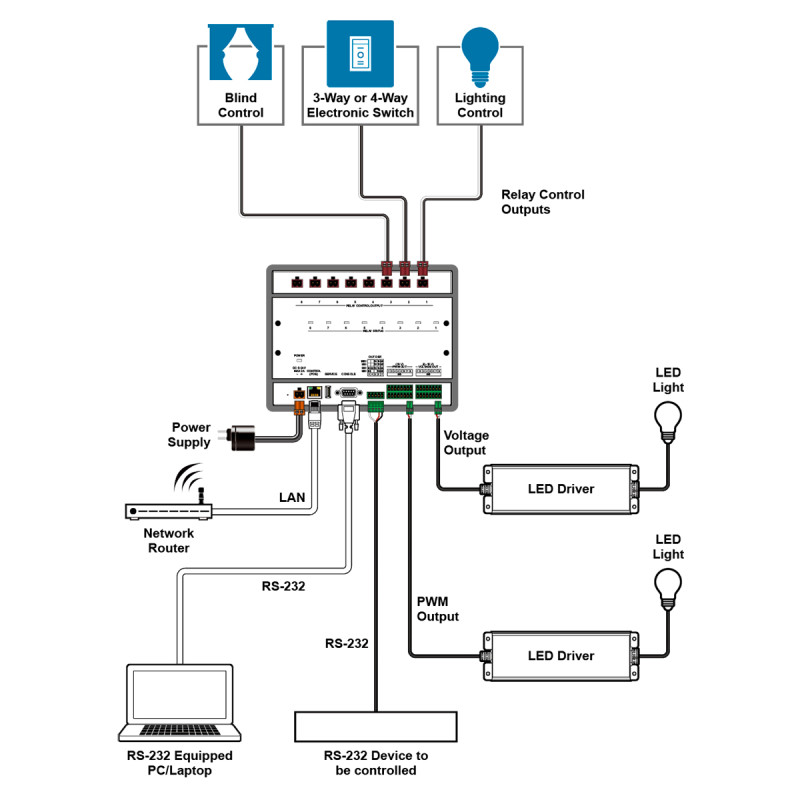

| Interfaces | |
|---|

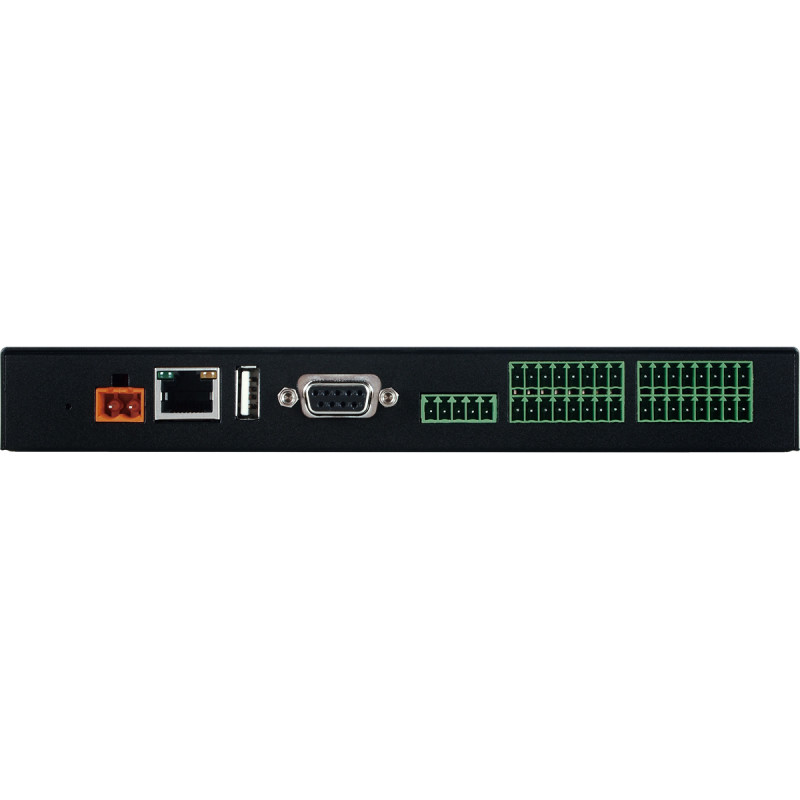

| Input Port | - 1 IP Control (RJ45)
- 1 RS-232 (9-pin D-sub)
|

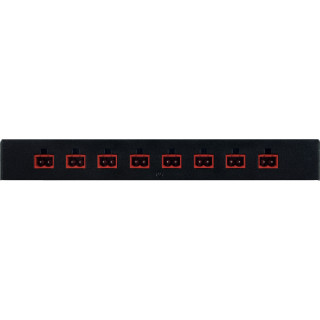

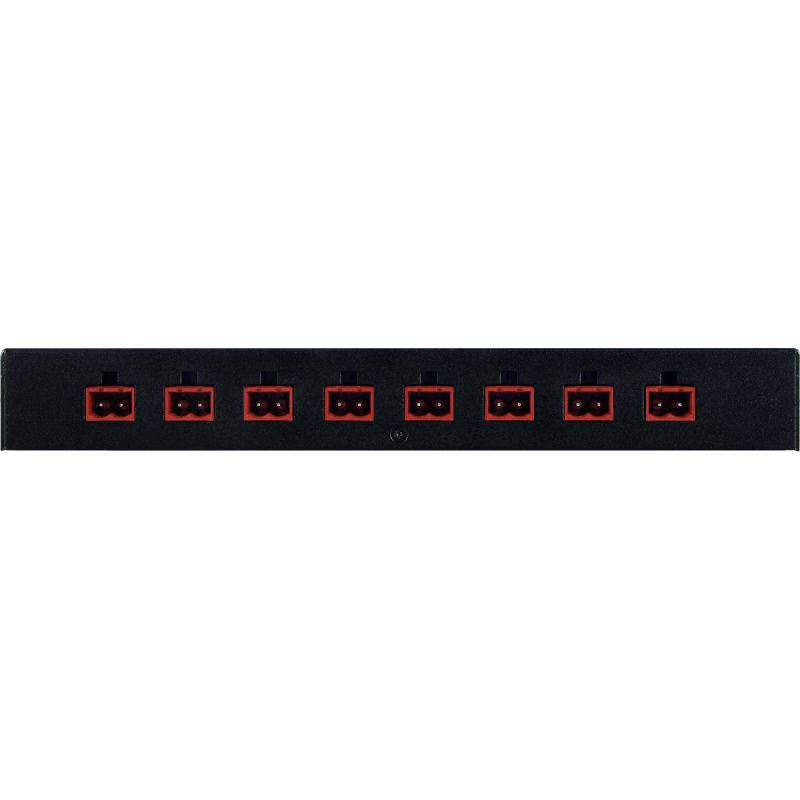

| Output Port | - 8 Relay (Terminal Block)
- 8 Vpltage (Terminal Block)
- 8 PWM (Terminal Block)
- 1 RS-232/RS-422/RS-485/DMX512 (Terminal Block)
|
| Enclosure | |
|---|
| Chassis Material | |
| Chassis Color | |
| Dimensions (W×H×D) | - 200 mm×26 mm×90 mm /Jack Excluded
- 200 mm×31 mm×95 mm /Jack Included
|
| Weight | |
| Field Firmware Update | |
|---|
| Interface | |
| Ordering Information | |
|---|
| Model No. | Product Description |
| CDPS-RLY | - Auxiliary Relay Control System
|
