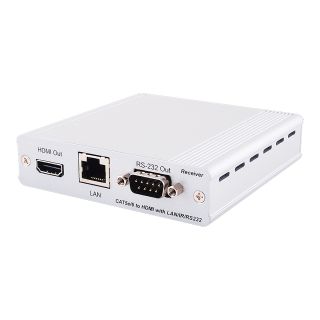

CAT5e/6 to HDMI with LAN/IR/RS-232 (4K@60 420 up to 70M) - Cypress CH-507RXBD

CAT5e/6 to HDMI with LAN/IR/RS-232 (4K@60 420 up to 70M) - Cypress CH-507RXBD

Artikelnummer: CYP-CH-507RXBD
HAN: CH-507RXBD
Kategorie: Extenders
Hersteller: Cypress Technology

The HDMI over CAT5e/6/7 Transmitter and Receiver set can send uncompressed video/audio and IP data over an single run of CAT5e/6 ...

Preis auf Anfrage

Sofort verfügbar

Beschreibung
Frage zum Artikel

The HDMI over CAT5e/6/7 Transmitter and Receiver set can send uncompressed video/audio and IP data over an single run of CAT5e/6/7 cable up to 100m/328ft at 1080p and 70m/229ft at 4K. It has the added benefi t of control through the built-in RS-232 pass-through and 2-way IR control and a LAN serving connection. Additionally, it has bi-directional Power over Cable (PoC) functionality that allows for greater fl exibility in installations.

RS-232 with baud rate up to 115200/sec
Supports wide range of IR frequency from 30~50kHz
Supports HDMI 3D and 4K x 2K features
Supports HDCP repeater and CEC bypass
Supports distance up to 100m/328ft at 1080p and 70m/229ft at 4K through CAT5e/6/7 cable
Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
HDBaseT™ convergence: uncompressed high-defi nition Video and Audio, LAN serving, Bi-directionlal Power over Cable (PoC) and IR/RS-232 Control pass-through

Interfaces
Input Port	HDBaseT (RJ-45) IR Extender(3.5mm)
Output Port	HDMI(Type-A) LAN(RJ-45) RS-232(DE-9) IR Blaster(3.5mm)

Video
HDMI Compliance	HDMI2.0 (DVI 1.0)
HDCP Compliance	HDCP2.X
Input Signal Types	4K@60 YUV 4:2:0
Output Signal Type	4K@60 YUV 4:2:0

Resolutions
Maximum Input	HDBaseT	4096×2160p@60 YUV 4:2:0
Maximum Output	HDMI	4096×2160p@60 YUV 4:2:0 4096×2160p@30 YUV 4:2:0

Power
Power Supply	24 V/1.25 A DC (US/EU Standards, CE/FCC/UL certifi ed)
Power Consumption	13 W

Enclosure
Chassis Material	Aluminum
Chassis Color	White
Dimensions (W×H×D)	102 mm ×25 mm ×113 mm
Weight	252g

Field Firmware Update
Interface	PCB on board, uses RS232

Ordering Information
Model No.	Product Description
CH-507RXBD	CAT5e/6/7 to HDMI with LAN/IR/RS-232
CH-507TXBD	HDMI to CAT5e/6/7 with LAN/IR/RS-232
