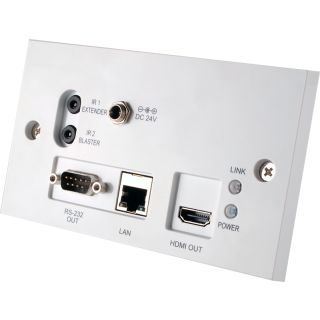

CH-507RXWPBD - 4K60 (4:2:0) HDMI over HDBaseT Wallplate Receiver with IR, RS-232, Bidirectional PoC & LAN (2 Gang UK)

CH-507RXWPBD - 4K60 (4:2:0) HDMI over HDBaseT Wallplate Receiver with IR, RS-232, Bidirectional PoC & LAN (2 Gang UK)

Artikelnummer: CH-507RXWPBD
HAN: CH-507RXWPBD
Kategorie: Cypress Technology
Hersteller: Cypress Technology

The HDMI over Single CAT5e/6/7 Wallplate Transmitter and Receiver set can send uncompressed video/audio and IP data over a single run of CAT5e/6/7 cable up to 100 meters. It has the added bene ...

323,00 €

exkl. 19% USt. ,

Knapper Lagerbestand
Lieferzeit: 1 - 3 Werktage (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

The HDMI over Single CAT5e/6/7 Wallplate Transmitter and Receiver set can send uncompressed video/audio and IP data over a single run of CAT5e/6/7 cable up to 100 meters. It has the added benefit of control through the built-in RS-232 pass-through and 2-way IR control and a LAN serving connection. Additionally, it has bi-directional Power over Cable (PoC) functionality that allows for greater flexibility in installations.

HDMI (with 3D format and 4K2K resolution support), HDCP and DVI compliant
Supports HDCP repeater and CEC bypass functions
Simultaneous transmission of uncompressed video/audio and data over a single CAT5e/6/7 cable up to 100m/328ft
HDBaseT™ 5Play convergence: uncompressed high-definition Video and Audio, LAN serving, bi-directional Power over Cable (PoC) and IR/RS-232 Control pass-through
Supports uncompressed video up to 4K2K resolution (3840×2160@30 Hz or 4096×2160@24 Hz)
Supports pass-through of high-definition audio formats - LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
Wall-plate design and installation friendly

Inputs	1x RJ-45 [1x HDMI & Propriety Data] 1x 3.5mm [1x Infrared Receiver]
Outputs	1x HDMI [1x Uncompressed AV and Data] 1x 3.5mm [1x Infrared Emitter] 1x DE-9 [1x RS-232 Data] 1x RJ-45 [1x LAN Serving]
PSU:	24V/1.25A
Dimensions	146mm [W] x 86mm [D] x 48mm [H]
Net Weight	160g

Manual
