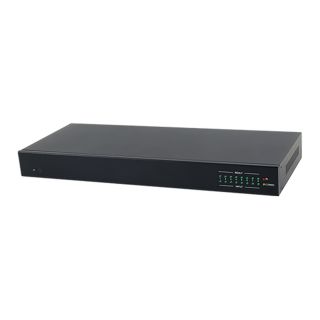

Control System Center - Cypress CDPS-CS4

Control System Center - Cypress CDPS-CS4

Artikelnummer: CYP-CDPS-CS4
HAN: CDPS-CS4
Kategorie: Master
Hersteller: Cypress Technology

As we enter a new era of smart devices, the dream of controlling everything with one finger is finally upon us. This Control Sys ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

As we enter a new era of smart devices, the dream of controlling everything with one finger is finally upon us. This Control System Center allows those dreams to come true by not only providing direct but also indirect control interfaces for all of your devices. Direct control methods such as IR (with IR learning), RS-232, relay, and DC triggers allow users to maintain traditional styles of control over devices while indirect device control is possible using telnet allowing users to control newer, more complicated devices. With this product you can pre-program and recall up to 16 distinct macros (8 can be directly activated via external triggers or IR remote) providing for complete control over your audio and video environment.

Supports 1 IR Learning input, 8 IR Blaster outputs, 8 Trigger inputs, 8 Relay outputs, 2 COM ports, and 4 Ethernet ports
Supports an IR learning function which captures the IR signal broadcast by your remote when you press a button for retransmission as a part of a macro
Supports trigger inputs with a voltage range of 0~15V (triggers at 5V)
Supports Baud rates from 4800bps to 115200bps
Supports 10/100 Ethernet network connections

Input Ports	1×IR Learner (3.5mm), 8×Trigger (2-pin Terminal Block)
Output Ports	8×IR Blaster (3.5mm), 8×Relay (2-pin Terminal Block), 2×COM (9-pin D-sub), 4×LAN (RJ45)
IR Frequency	30 - 50kHz (30 - 60kHz under ideal conditions)
Baud Rate	Up to 115200bps
Power Supply	5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
ESD Protection	Human Body Model: ±12kV (Air Discharge) ±8kV (Contact Discharge)
Dimensions	432mm×44mm×174mm (W×H×D) [Case Only] 432mm×49mm×181mm (W×H×D) [All Inclusive]
Weight	2,186g
Chassis Material	Metal
Silkscreen Color	Black
Operating Temperature	0˚C - 40˚C/32˚F - 104˚F
Storage Temperature	−0˚C - 60˚C/−˚F - 140˚F
Relative Humidity	20 - 90% RH (No-condensing)
Power Consumption	7.7W
Input Ports	1×IR Learner (3.5mm), 8×Trigger (2-pin Terminal Block)
Output Ports	8×IR Blaster (3.5mm), 8×Relay (2-pin Terminal Block), 2×COM (9-pin D-sub), 4×LAN (RJ45)
IR Frequency	30 - 50kHz (30 - 60kHz under ideal conditions)
Baud Rate	Up to 115200bps
Power Supply	5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
ESD Protection	Human Body Model: ±12kV (Air Discharge) ±8kV (Contact Discharge)
Dimensions	432mm×44mm×174mm (W×H×D) [Case Only] 432mm×49mm×181mm (W×H×D) [All Inclusive]
