4K @ 60Hz, HDR, 4:4:4 Chroma
- Audio Return Channel (ARC)
- High Dynamic Range imaging (HDR)
- HDMI Ethernet Channel (HEC)
- Consumer Electronics Control (CEC)
- High-Bandwidth Digital Content Protection(HDCP)
- Dolby TrueHD & DTS-HD Master Audio
- 48-Bit Deep Color & 3D
- Foil shielding & Braided shielding
- 24K Gold-plated HDMI connectors
- Slimmest wire size ? 36 AWG

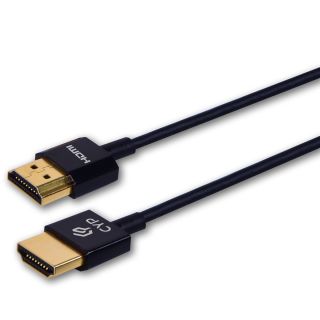

The ultra-slim HDMI cable is 50% smaller than regular 4K HDMI cable, this flexible and compact design is easy to carry and is the ideal solution for tight spaces, kept almost hidden from sight.
Not all the HDMI cables in the market are the same. The Ultra-slim HDMI cable is the one you should select to deliver a 4K signal. The cable can transmit video and audio over the full 18Gbps bandwidth and it passes an EMI (electromagnetic interference) noise test.
Its excellent construction combines gold-plated connectors, bare copper conductors, and foil and braid shielding to provide superior cable performance, static-free video transmission, and unwanted noise suppression.
SPECIFICATIONS | |
HDMI Signal Support | |
HDMI Standards | 2.0 (18Gbps) |
Video Format | 4K/1080p, 60fps, 3D, HDR |
Data Rate | 18Gbps |
Control Signal | HDCP 2.2/EDID/ CEC/ DDC |
Connector | HDMI Type A Connector |
Audio Support | Dolby TrueHD/ DTS-HD Master Audio |
Physical Properties | ||
Op. Temp. | 0°C to 50 ° C | |
Humidity | 0%~85% RH | |
Bending Radius | 7mm | |
Pulling Force | 6kg | |
Comparison Chart | ||||||
Ultra-slim HDMI2.0 | Premium HDMI 2.0 | Ultra HDMI 2.1 | ||||
Bandwidth | 18Gbps | 18Gbps | 48Gbps | |||
Max Resolution | 4K UHD 3840*2160@60Hz | 4K UHD 3840*2160@60Hz | 8K 7680 x 4320@60Hz | |||
Slimmest & Longest | 36AWG | 0.2m | 30AWG | 1.0m | 30AWG | 1.0m |
0.5m | 2.0m | 2.0m | ||||
1.0m | 28AWG | 3.0m | 3.0m | |||
1.8m | 5.0m | 26AWG | 5.0m | |||
24AWG | 7.0m | |||||
ORDERING INFORMATION | |
Model No. | Product Description |
CBL-H100-002 | Ultra-slim HDMI 2.0, 0.2M, 36AWG |
CBL-H100-005 | Ultra-slim HDMI 2.0, 0.5M, 36AWG |
CBL-H100-010 | Ultra-slim HDMI 2.0, 1.0M, 36AWG |
CBL-H100-018 | Ultra-slim HDMI 2.0, 1.8M, 36AWG |
CBL-H300-010 | Premium HDMI 2.0, 1.0M, 30AWG |
CBL-H300-020 | Premium HDMI 2.0, 2.0M, 30AWG |
CBL-H300-030 | Premium HDMI 2.0, 3.0M, 28AWG |
CBL-H300-050 | Premium HDMI 2.0, 5.0M, 28AWG |
CBL-H300-070 | Premium HDMI 2.0, 7.0M, 24AWG |
