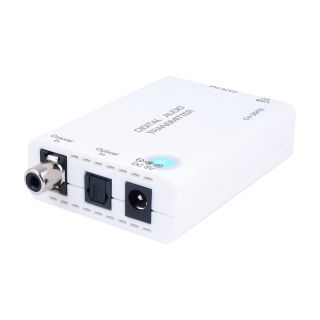

Digital Audio over Single CAT5e/6/7 Transmitter - Cypress CH-304TX

Digital Audio over Single CAT5e/6/7 Transmitter - Cypress CH-304TX

Artikelnummer: CH-304TX
HAN: CH-304TX
Kategorie: Extender
Hersteller: Cypress Technology

The Digital Audio Extender is useful for sending the digital audio signal up to 150m away at high quality. The units can switch ...

110,88 €

exkl. 19% USt. , zzgl.

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

The Digital Audio Extender is useful for sending the digital audio signal up to 150m away at high quality. The units can switch between Coaxial and Optical digital signals and can be powered by either USB or power adaptor allowing users flexibility of choice between power sources. With its elegant and compact design, user friendly operation and easy installation, the Digital Audio Extender is ideal tool for extending digital audio from one location to another.

Supports Coaxial or Optical digital audio S/PDIF signal
Supports stereo and multi-channel digital audio such as LPCM 2 CH, Dolby Digital or DTS 5.1 CH
Supports industry standard Category 5/5e/6 cable
Digital audio S/PDIF performance sampling rate 96 kHz
Supports single Coaxial input to Coaxial signal output
Supports single Optical input to Optical signal output
Note: Only one of the two units need to be powered for both to
operate. Use only a single type of power per unit, either the 5V DC
power supply or the 5V USB connection.

Interfaces

Input Port

1×Coaxial

1×Optical

Output Port

1×CAT6

Power
Power Supply	5 V/1 A DC (US/EU Standards, CE/FCC/UL certified)
Power Consumption	2W

Enclosure
Chassis Material	Plastic
Chassis Color	White
Dimensions (W×H×D)	70mm×22mm×50 mm
Weight	50g

ORDERING INFORMATION

Model No.	Product Description
CH-304TX	Digital Audio Transmitter
CH-304RX	Digital Audio Receiver
