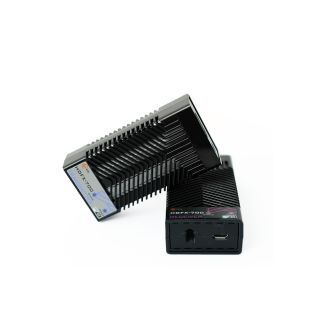

HDMI 2.0 one(1) fiber optical detachable extender with copper extension, HDFX-700-TR, extends HDMI 2.0 signal up to 200m (656feet) and transmits 4K UHD (4096x2160) at 60Hz over one(1) LC multi-mode fiber(OM3). Cutting-edge technology of Opticis reduces limits in installation by providing an option for longer copper extension.
HDFX-700-TR transmits uncompressed and transparent data signal even when used with up to 2 m copper cable as an intermediary. This enables installation of the product in the limited spaced area in such our small module type extender cannot be used. 2m copper cables for both sides are provided in the shipping group.
Furthermore, HDFX-700-TR offers two extra options to enhance its quality. By selecting the type of firmware, it can fully support ARC up to 200m, or it can fully interoperate with a direct connection type module, HDFX-500 as a pair.
- Supports HDMI 2.0 standards
- Extends up to 4K (4096x2160) at 60Hz, (RGB & YCbCr : 4:4:4)
- Transmits data up to 200m (656feet) over one (1) LC multi-mode fiber (OM3)
- Extra copper extension available up to 2m on each side (TX/RX)
- Two selectable options for convenience:
- ARC supported up to 200m
- Fully compatible with using HDFX-500
- Offers total data rate 18 Gbps
- Power Rack (BR-400) available for mounting up to 8 units
- Supports HDR at 10bit or 12bit speed respectively within 18 Gbps
- Firmware upgradable via micro USB port
- Complies with CEC, EDID, and HDCP 2.2/1.4
- Plug & Play
- Data security with negligible EMI emission
- Operated by DC power supplier 5V/1A
- Label color distinction: TX (silver) & RX (black)
- Certifies FCC and CE standards for EMI/RFI emission
