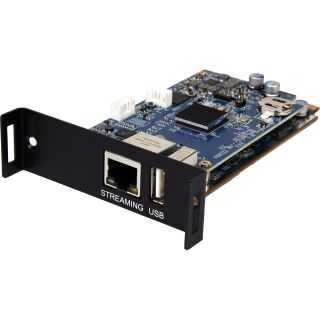

SDM-S301E is a reliable, high-performance H.264/265 Live Video Streaming and Recording module card that transmits 4K60 video signal over standard Gigabit Ethernet. Video output can be up to 4K60 for better quality for streaming. Streaming A/V can be compatible with RTSP/TCP/UDP/RTMP and be streamed on YouTube, Facebook and other platforms instantly and easily. All video content is encoded and streamed with minimal latency and high quality ,making it ideal for live streaming events to a variety of popular online streaming services or within the local network. The video may also be recorded locally (via USB thumb drive) or to a local network drive while it is being streamed.
- Integrated support live streaming to Facebook, YouTube or Twitch channels
- 4K60 4:4:4 video over standard Gigabit Ethernet
- Recorded video can be stored at locally connected USB storage (FAT or exFAT format) or to a designated network drive supporting NFS or CIFS
Interfaces | |
Bi-directional Port | 1 GbE LAN (RJ-45) |
Control I/O | 1 USB (Type-A) |
Video | ||
HDMI Compliance | HDMI 2.0 | |
Input Signal Type | 4K@60 YUV 4:4:4 | |
Output Signal Type | 4K@60 (H.264/265) | |
Resolutions | ||
Maximum Output | LAN (Streaming) | 3840×2160p@60 |
Enclosure | |
Chassis Material | Metal (Steel) |
Chassis Color | Black |
Dimensions (W×H×D) | 128mm×75mm×25mm [Case Only] 128mm×79mm×25mm [All Inclusive] |
Weight | 300g |
Field Firmware Update |
CSC-VPR-3421 |
ORDERING INFORMATION |
Model No. | Product Description |
SDM-S301E | UHD+ H.264/265 Live Video Streaming and Recording Module Card |
CSC-VPR-3421 | UHD+ HDMI Mulitview Processor with Multi-Function Extension Slot |
