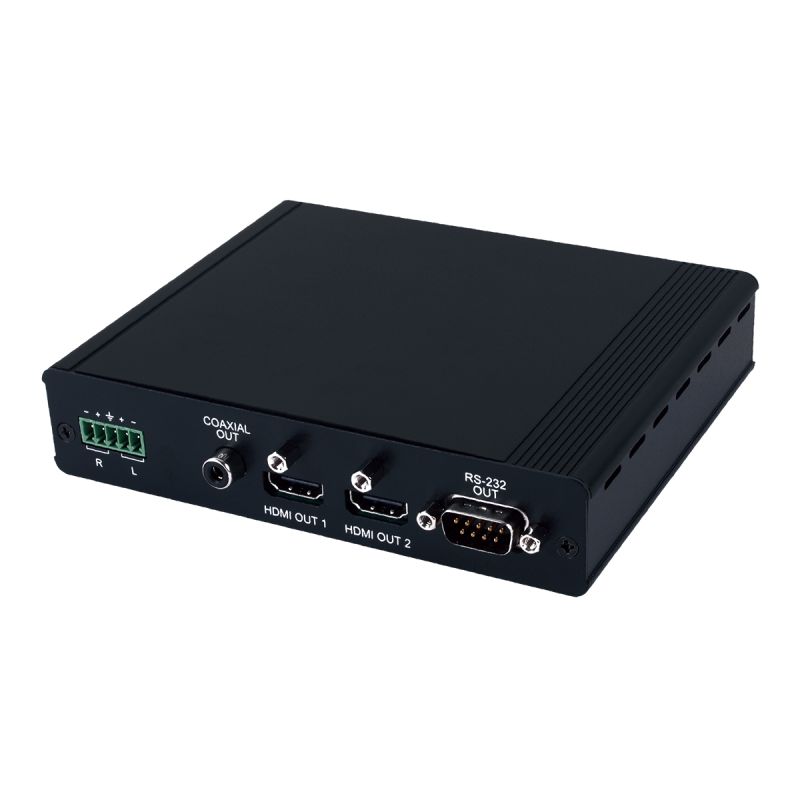

HDBaseT to Dual HDMI Receiver with Bi-directional 24V PoC and Audio De-embedding - Cypress CH-526RXPL

HDBaseT to Dual HDMI Receiver with Bi-directional 24V PoC and Audio De-embedding - Cypress CH-526RXPL

Artikelnummer: CYP-CH-526RXPL
HAN: CH-526RXPL
Kategorie: Extenders
Hersteller: Cypress Technology

The HDMI and Audio over Single CAT5e/6/7 Receiver/Splitter can receive uncompressed audio/video over a single run of CAT5e/6/7 c ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

The HDMI and Audio over Single CAT5e/6/7 Receiver/Splitter can receive uncompressed audio/video over a single run of CAT5e/6/7 cable up to 60m. It has the added benefit of simultaneouse dual HDMI outputs with audio de-embedding to a balanced or digital coaxial audio output and IR control function The unit has a bidirectional PoC (Power over Cable) function that can power or be powered by a compatible transmitter allowing for greater flexibility in installations.

Supports full range HDTV and PC output resolutions up to 4K2K and WUXGA (RB)
Receive uncompressed data over a single 60m CAT5e/6/7 cable
4Play™ convergence: Video, Audio, Bidirectional PoC & Control (IR & RS-232 bypass) upports bidirectional IR, Remote control and RS-232 (bypass)
Provide with 24V DC power to or received from compatible PoC transmitter through CAT5e/6/7
Supports Balanced analog audio output (R/L) and HDMI input audio sampling rate up to 192kHz
Support coaxial digital audio up to 192kHz

Video Bandwidth	340MHz / 10.2Gbps

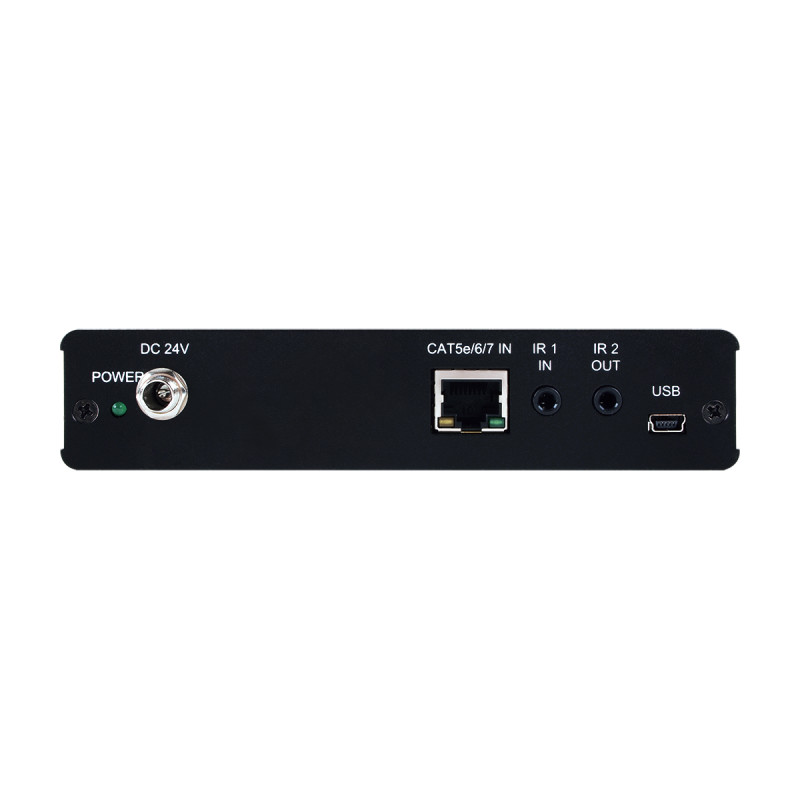

Input Ports	1x CAT5e/6/7, 1 x IR Extender

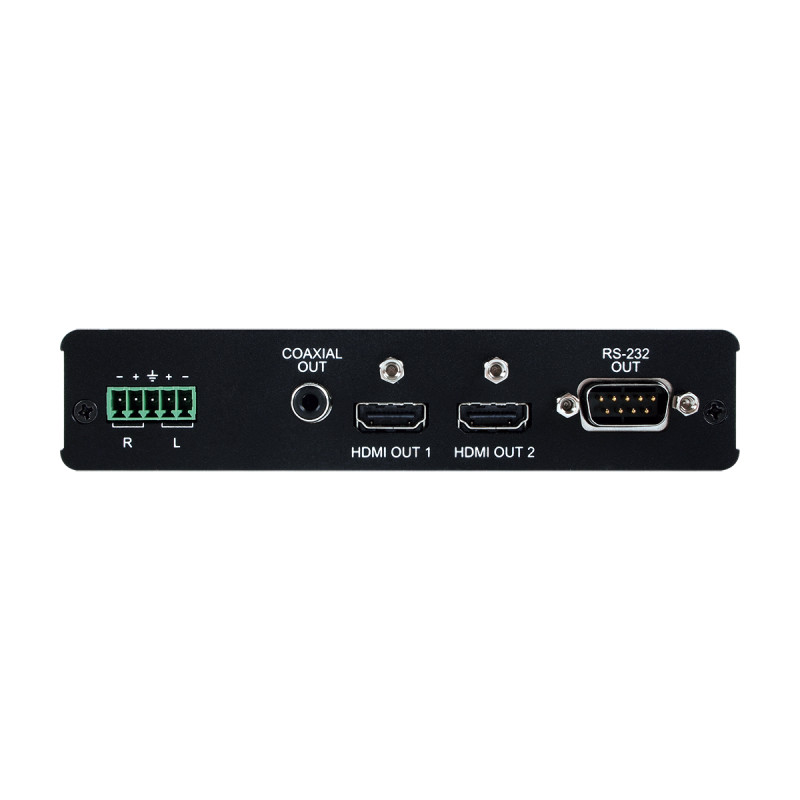

Output Ports	2 x HDMI, 1 x Coaxial, 1 x Balanced Analog (R/L), 1×IR Blaster, 1 x RS-232
CAT5e/6/7 Output Cable Distance	Up to 60 Meters
HMDI Input/Output Cable Distance	Up to 10 Meters@1080p or 5 Meters@4K2K
HDMI output Resolution	Up to 4K2K@24/25/30 & 4K2K@50/60 (YUV 420)
Audio Sampling Rate	Up to 96 kHz / Balanced Analog Up to 192 kHz / Coaxial & HDMI
IR Frequency	30~50 kHz
Power Supply	24V/1.25A DC (US/EU standards, CE/ FCC/UL certified)
ESD Protection	Human body model: ±8kV (air-gap discharge) ±6kV (contact discharge)
Dimensions (mm)	145 (W) x 115 (D) x 30(H)/Jack Excluded 145 (W) x 128 (D) x 30(H)/Jack Included
Weight (g)	375
Chassis Material	Aluminum
Silkscreen Color	Black
Operating Temperature	0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature	-20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity	20 ~ 90% RH (non-condensing)
Power Consumption	11w
