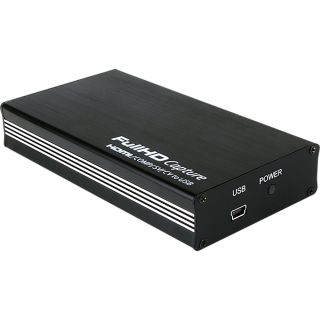

HDMI/COMP/SV/CV to USB FullHD Capture - Cypress CUSB-603
The ?CUSB-603 is High Definition capture box supports HDMI 1080p video/component/SV/CVinput and record to H.264 video format. Its low power consumption and superior video processing capabilities make it ideal for integration into high-end portable and desk top PC products.
- Supports Full HD capture of HDMI/COMP/SV/CV signal to USB
- Built-in H.264/MPEG4-AVC High Definition encoder
- Video input Supports input video timings: 1920 x 1080, 1280 x 720, 576, 720 x 480
- Supports MPEG-4 Advanced Audio Coding (AAC)
- Supports audio sampling frequency of 48 KHz
- Powered via USB bus power with low power consumption
Input port | 1 x HDMI |
Output port | 1 x USB |
HDMI Cable Distance | 13M |
Power Supply | 5V/500mA DC USB bus power |
Dimensions | 65.5 mm (W) × 121.5 mm (D) × 22 mm (H) |
Weight | 146 g |
Chassis Material | Aluminum |
Silkscreen Colour | Black |
Power Consumption | 2.5 W |
Operating Temperature | 0 ?C~40 ?C / 32 ?F~104 ?F |
Storage Temperature | ?20 ?C~60 ?C / ?4 ?F~140 ?F |
Relative Humidity | 20~90 % RH (non-condensing) |
