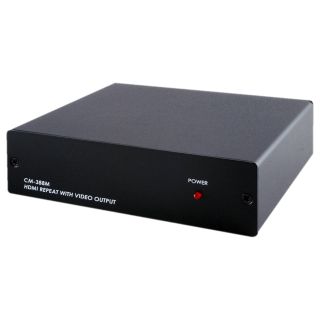

HDMI Repeat with Video Output - Cypress CM-388M

HDMI Repeat with Video Output - Cypress CM-388M

Artikelnummer: CM-388M
HAN: CM-388M
Kategorie: Scaler
Hersteller: Cypress Technology

The HDMI Repeater with Video Output is designed to convert the digital signal from HDMI (or DVI + Coaxial) source to an analog N ...

301,83 €

exkl. 19% USt. ,

Knapper Lagerbestand
Lieferzeit: 1 - 3 Werktage (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

The HDMI Repeater with Video Output is designed to convert the digital signal from HDMI (or DVI + Coaxial) source to an analog NTSC or PAL signal, with L/R stereo audio. As well as S-Video and Composite Video outputs, it also provides an HDMI bypass output to deliver the original signal, and a Coaxial output to send S/PDIF digital audio to an amplifier. The unit provides a convenient method of converting non-HDCP high definition content to standard 480i or 576i resolutions for DVR or VCR recorders.

Converts video signal from HDMI source to NTSC or PAL signal (selectable)
Converts digital audio from HDMI source to analog stereo audio
Accepts a wide range of HDTV input resolutions, from 480i to 1080p@60 Hz and PC from VGA@60 Hz to WUXGA@60 Hz (RB)
Supports Coaxial input audio sample rate 44.1KHz, 48KHz and 96KHz

Interfaces
Input Port	1 HDMI 1 Coaxial
Output Port	1 HDMI 1 Coaxial 1 Composite Video 1 S-Video 2 L/R

Video
HDMI Compliance	HDMI 1.2 (DVI 1.0 )
HDCP Compliance	1.4
Input Signal Types	1080p60 12-bit
Output Signal Type	CV/SV : NTSC, NTSC4, PAL, PAL-M, PAL-N & SECAM HDMI : 1080p60 12-bit

Resolutions
Maximum Input	HDMI	4096x2160p@60 YUV 4:4:4
Maximum Output	HDMI	4096x2160p@60 YUV 4:4:4
	CV/SV	4096x2160p@60 YUV 4:4:4

Power
Power Supply	5V/2.6A DC
Power Consumption	5.5W

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	141 mm × 38 mm × 127 mm
Weight	510g

Ordering Information
Model No.	Product Description
CM-388M	HDMI Repeat with Video Output
