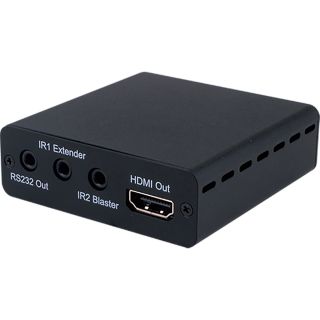

HDMI over CAT5e/6/7 Receiver - Cypress CH-506RXL

HDMI over CAT5e/6/7 Receiver - Cypress CH-506RXL

Artikelnummer: CH-506RXL
HAN: CH-506RXL
Kategorie: Extenders
Hersteller: Cypress Technology

This HDBaseT (Lite version of technology) HDMI over Single CAT5e/6/7 Transmitter and Receiver Set can send uncompressed audio/ ...

141,68 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

This HDBaseT (Lite version of technology) HDMI over Single CAT5e/6/7 Transmitter and Receiver Set can send uncompressed audio/video over a single run of CAT5e/6/7 cable up to 60m (1080p) and has the added benefit of control through the built-in RS-232 and 2-way IR.

HDMI wit 3D and 4K2K (Ultra HD) support, HDCP and DVI compliant
Supports HDCP repeater and CEC functions
Simultaneous transmission of uncompressed video, audio and data over a single Cat.5e/6/7 cable up to 70m/230ft at 1080p and 35m/115ft at 4K
Supports HD resolutions up to 1080p@60Hz/36-bit and Ultra HD (4K2K)
Audio support up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
Supports HDBaseT Lite Technology including 2-Way IR and RS-232
Installation friendly

Interfaces
Input Port	1 HDMI (Type-A) (TX), 1 RJ45 (RX)
Output Port	1 HDBT(RJ45) (TX), 1 HDMI (RX)
Control I/O	1 IR Extender [3.5mm] (both TX and RX) 1 IR Blaster [3.5mm] (both TX and RX) 1 RS232 DE-9 (female on TX, male on RX) 1 LAN (RJ-45) (both TX and RX)

Video
HDCP Compliance	1.x
Input Signal Types	HDMI 4K@24 8-bit
Output Signal Types	HDBT 4K@24 8-bit
		Resolutions
Maximum Input	HDMI	4096×2160p@24
Maximum Output	HDBT	4096×2160p@24

Audio
Input Signal Types	HDMI Unbalanced Stereo
Digital Formats	HDMI	LPCM 7.1CH, Dolby TrueHD and DTS-HD Mater Audio

Power
Power Supply	5V/2.6A
Power Consumption	3W(TX), 6W(RX)

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	71mm (W)×79mm (D)×23mm (H) (both TX, RX)
Weight	240g (TX), 245g (RX)

ORDERING INFORMATION
Model No. Product Description
CH-506TXL/RXL	HDMI over CAT5E/6/7 Transmitter & Receiver
