?The CH-507TX & RX set allows uncompressed HDMI? signals and IP data to be transmitted over a single CAT5e/6/7 cable. This solution has the added features of built-in RS-232, 2-way IR control and Power over Ethernet all over the single CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 meters.
- HDMI 1.4 with 3D, 4k2k support, HDCP & DVI Compliant
- Supports CEC bypass
- Simultaneous transmission of uncompressed data over a single 100m/328ft CAT5e/6 cable
- Uncompressed video 1080p, 60Hz, 36-bit
- Audio support up to 7.1CH & Dolby TrueHD, DTS-HD Master Audio
- HDBaseT 5Play? convergence: HDMI, LAN, PoE & Control (IR & RS-232)
Interfaces | |
Input Port | 1 HDMI (Type-A) (TX), 1 RJ45 (RX) |

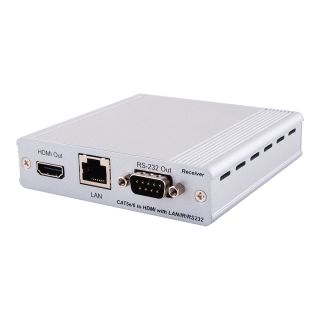

Output Port | 1 HDBT(RJ45) (TX), 1 HDMI (RX) |
Control I/O | 1 IR Extender [3.5mm] (both TX and RX) 1 IR Blaster [3.5mm] (both TX and RX) 1 RS232 DE-9 (female on TX, male on RX) 1 LAN (RJ-45) (both TX and RX) |
Video | ||
HDMI Compliance | 1.x | |
HDCP Compliance | 1.x | |
Input Signal Types | HDMI 4K@60 8bit YUV 4:2:0 | |
Output Signal Types | HDBT 4K@60 8bit YUV 4:2:0 | |
Resolutions | ||
Maximum Input | HDMI | 4096×2160p@60 YUV 4:2:0 |
Maximum Output | HDBT | 4096×2160p@60 YUV 4:2:0 |
Audio | |
HDMI | LPCM (8 Channels), Bitstream, High Bit Rate Bitstream |
HDBT | LPCM (8 Channels), Bitstream, High Bit Rate Bitstream |
Power | |
Power Supply | 24V/1.25A |
Power Consumption | 13W (Full load) |
Enclosure | |
Chassis Material | Metal (Steel) |
Chassis Color | Silver |
Dimensions (W×H×D) | 102 mm (W)×113 mm (D)×25 mm (H)/TX 102 mm (W)×107 mm (D)×25 mm (H)/RX |
Weight | 252 g/TX, 256 g/RX |
ORDERING INFORMATION | |
Model No. | Product Description |
CH-507TX/RX | HDMI over CAT5e/6/7 Transmitter and Receiver |
