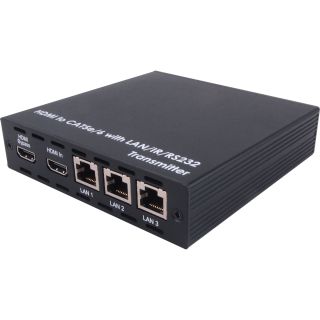

HDMI over CAT5e/6/7 Transmitter with 24V PoC and 3 LAN Serving - Cypress CH-1109TXC
??The CH-1109TXC & RXC set features 5-Play? HDBaseT? technology. This will allow the user to distribute uncompressed HDMI? (audio/video), 2-Way IR, 2-Way RS-232, PoE and 3 individual Ethernet connections over a single CAT5e/6/7 up to a distance of 100m.
- ?HDMI 1.4 compliant with 3D formats and 4k×2k resolution support
- Supports CEC bypass function
- Simultaneous transmission of uncompressed video and audio (1080p@60Hz/-Deep Color) over a single CAT5e/6 type cable for up to 100m (300ft.)
- Audio support up to 7.1CH Dolby TrueHD and DTS-HD Master Audio
- Connect and share up to 6 Ethernet connections at speeds up to 100Mbps
- Various controls over HDMI: CEC, RS232 and IR
- 5Play? convergence: HD video, audio & Control ports (IR and RS232)/LAN/PoC
- Installation friendly
- Single power supply powers both units, receiver unit is powered through the transmitter
Video Bandwidth | 300 MHz/9 Gbps |
Ethernet Speed | 100 Mbps |
Input | 1×HDMI , 3×Ethernet 1×RS-232, 1×IR Extender |
Output | 1×CAT5e/6, 1×HDMI Bypass, 1×IR Blaster |
HDMI In/Out Cable Distance | Up to 10 Meters |
CAT6 In/Out Cable Distance | Up to 100 Meters |
HDMI In/Out Supports Resolution | 480i~1080p@50/60 1080p@24 VGA~WUXGA |
IR Frequency | 30~50 kHz |
ESD Protection | Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge) |
Power Supply | 24 V/1.25 A DC (US/EU Standards, CE/FCC/ UL certified) |
Dimensions | 125 mm(W) x 127 mm (D) x 30 mm (H) |
Weight | 360g |
Chassis Material | Aluminum |
Silkscreen Color | Black |
Power Consumption | 6W |
Operating Temperature | 0?C~40?C/32?F~104?F |
Storage Temperature | ?20 ?C~60 ?C/??F~140 ?F |
Relative Humidity | 20~90 % RH (non-condensing) |
