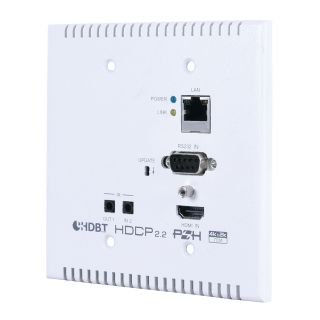

HDMI over Cat.5e/6/7 Wall-Plate Extender with LAN/ IR/RS-232/PoH (4K@60 420 up to 70M) - Cypress CH-1527TXWPUS

HDMI over Cat.5e/6/7 Wall-Plate Extender with LAN/ IR/RS-232/PoH (4K@60 420 up to 70M) - Cypress CH-1527TXWPUS

Artikelnummer: CH-1527TXWPUS
HAN: CH-1527TXWPUS
Kategorie: Extenders
Hersteller: Cypress Technology

This HDMI over single Cat.5e/6/7 Transmitter and Receiver set can send uncompressed, high resolution, video/audio over a single ...

434,71 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This HDMI over single Cat.5e/6/7 Transmitter and Receiver set can send uncompressed, high resolution, video/audio over a single cable up to a distance of 100 meters. In addition to the audio and video capabilities, it can also bidirectionally transmit RS-232 and IR control signals as well as extending your local LAN to the display device US 2 gang design allowing install on AC outlet.

The Receiver (PD) is powered by the 48V PoH (Power over Ethernet) function of the Transmitter (PSE), allowing for greater flexibility in installations.

HDMI with 3D & 4K support. DVI signal compliant
Supports CEC bypass
Simultaneous transmission of uncompressed video, audio and data over a single 100m/328ft Cat.5e/6/7 cable
5Play™ convergence: HDMI, LAN, PoH & Control (IR & RS-2232)
Supports resolutions up to 4K@50/60Hz (YUV 4:2:0)
Supports standard 48V PoH from Transmitter (PSE) to Receiver (PD
Supports HDMI I/O cable distance up to 5m at 4K@50/60Hz (YUV 4:2:0
Installation friendly wall/table mount case design

Interfaces
Input Port	1 x HDMI (Type-A) 1 x IR In(3.5mm) 1 x RS-232(3.5mm) 1 x LAN(RJ-45)
Output Port	1 x HDBaseT (RJ-45) 1 x IR Out(3.5mm)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4K@60 YUV 4:2:0
Output Signal Type	4K@60 YUV 4:2:0

Resolutions
Maximum Input	HDMI	4096x2160p@60 YUV 4:2:0
Maximum Output	HDBaseT6/7	4096x2160p@60 YUV 4:2:0

Power
Power Supply	48 V/0.83 A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	12.87 W (Include Receiver

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	White
Dimensions (W×H×D)	125mm x 127mm x 37mm [Case Only] 125mm x 127mm x 45mm [All Inclusive]
Weight	206 g

Field Firmware Update
Interface	RS232

Ordering Information
Model No.	Product Description
CH-1527TXWPUS	HDMI over Cat.5e/6/7 Wall-Plate Extender with LAN/IR/ RS-232/PoH
CH-1527RXWPUS	HDMI over Cat.5e/6/7 Wall-Plate Extender with LAN/IR/ RS-232/PoH
