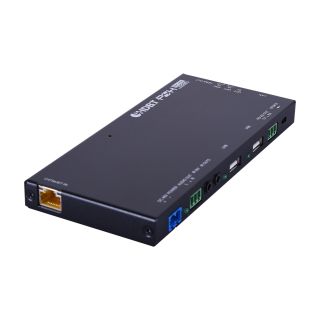

HDMI over HDBaseT Receiver (PSE) with Optical Audio Return (OAR) (4K@60 420 up to 100M) - Cypress CH-2602RX

HDMI over HDBaseT Receiver (PSE) with Optical Audio Return (OAR) (4K@60 420 up to 100M) - Cypress CH-2602RX

Artikelnummer: CH-2602RX
HAN: CH-2602RX
Kategorie: Extenders
Hersteller: Cypress Technology

This HDBaseT 2.0 Receiver can receive uncompressed UHD video and audio that has been transmitted over a single Cat.5e/6/7 cable ...

686,38 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This HDBaseT 2.0 Receiver can receive uncompressed UHD video and audio that has been transmitted over a single Cat.5e/6/7 cable up to 100m. It has the added benefit of extending control and communication signals through the built-in Ethernet, USB, RS-232 and IR ports. Independent external digital and analog audio transmission capability gives users the extra convenience of additional audio connections.

This unit’s system supports connecting any standard USB 2.0 host to the Transmitter, enabling the extension of the USB connection to up to 2 USB ports located on the Receiver, allowing it to act like a USB hub. The integrated 48V PoH (Power over HDBaseT) support provides power to the Transmitter (PD) from the Receiver (PSE), eliminating the need for a separate power supply for the Receiver. The ultra-thin mechanical design allows for flexibility in mounting locations, saving space and making your presentation space orderly and tidy.

Supports the HDBaseT 2.0 specification over a single Cat.6/7 cable up to 100m/328ft and Cat.5e cable up to 90m/295ft
HDBaseT 5Play™ convergence: High-Definition (HD) Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (Bi-directional IR/ RS-232 passthrough)
Transmitter (PD) is powered by 48V PoH from the Receiver (PSE)
2×USB 2.0 Type A ports
Supports pass-through of HD audio formats: LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
Supports optical audio sampling rates up to 48kHz
Supports external analog and digital audio extension including support for ARC (Audio Return Channel)
Supports RS-232 baud rates up to 115200bps
Ultra-thin mechanical design

Interfaces
Input Port	1 HDBaseT (RJ45) 1 Optical Audio (TOSLINK) 1 IR Extender (3.5mm)
Output Port	1 HDMI (Type-A) 2 USB 2.0 (Type A) 1 Stereo Audio (Terminal Block) 1 LAN (RJ45) 1 IR Blaster (3.5mm) 1 RS-232 (Terminal Block)

Video
HDMI Compliance	HDMI 1.4 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4K@60 YUV 4:2:0
Output Signal Type	4K@60 YUV 4:2:0

Resolutions
Maximum Input	HDBaseT(RJ45)	4096x2160p@60 YUV 4:2:0
Maximum Output	HDMI	4096x2160p@60 YUV 4:2:0

Power
Power Supply	48V/0.83A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	16.5 W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	163mm×16mm×78mm [Case Only] 163mm×16mm×79.2mm [All Inclusive]
Weight	352g

Field Firmware Update
Interfaces	PC

Ordering Information
Model No.	Product Description
CH-2602RX	HDMI over HDBaseT Receiver (PSE) with Optical Audio Return (OAR)
CH-2602TXWPUS	HDMI over HDBaseT Transmitter (PD) with Optical Audio Return (OAR)
