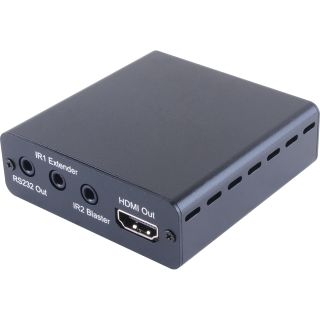

HDMI to CAT5e/6 Receiver (4K@60 420 up to 35M) - Cypress CH-506RXPL

HDMI to CAT5e/6 Receiver (4K@60 420 up to 35M) - Cypress CH-506RXPL

Artikelnummer: CH-506RXPL
HAN: CH-506RXPL
Kategorie: Extenders
Hersteller: Cypress Technology

This HDMI over HDBaseTTM with bidirectional IR, RS-232 & PoC Transmitter and Receiver set can make your home or office setup mor ...

215,59 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

This HDMI over HDBaseTTM with bidirectional IR, RS-232 & PoC Transmitter and Receiver set can make your home or office setup more efficient and easy to use. Uncompressed video and audio can be transmitted up to 60 meters with the PoC function and added benefit of controls through the built-in RS-232 and IR ports. This family design of HDBaseT™ technology allows a full usage of HDMI and controls over CAT5e/6/7 cable.

Supports HDMI 3D and 4K x 2K features
Supports HDBaseT-Lite Technology
Supports HD resolutions up to 1080p@60Hz/12-bit
Supports distance up to 60 meters through CAT5e/6/7 cable
Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
Supports RS-232 bypass with baud rate up to 115200/sec
Supports wide range of IR frequency from 30~50kHz
Supports HDCP repeater and CEC bypass
Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream

Interfaces

Input Port

1 x HDBaseT (RJ-45)

1 x IR Extender (3.5mm)

Output Port

1 x HDMI(Type-A)

1 x IR Blaster (3.5mm)

1 x RS-232(3.5mm)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0 )
HDCP Compliance	HDCP 2.X
Input Signal Type	4K@60 YUV 4:2:0
Output Signal Type	4K@60 YUV 4:2:0
		Resolutions
Maximum Input	HDBaseT	4096x2160p@60 YUV 4:2:0
Maximum Output	HDMI	4096x2160p@60 YUV 4:2:0

Power
Power Supply	24V/1.25A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	6W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	71 mm x 23 mm x 73.5 mm [Case Only] 71 mm x 23 mm x 79 mm [All Inclusive]
Weight	126g

Field Firmware Update
PCB on board, uses RS232

ORDERING INFORMATION
Model No.	Product Description
CH-506RXPL	HDMI to CAT5e/6/7 Receiver
CH-506TXPL	HDMI to CAT5e/6/7 Transmitter
