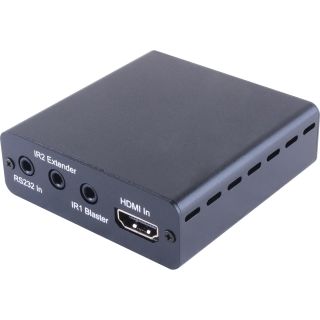

HDMI to CAT5e/6 Transmitter (4K@60 420 up to 35M) - Cypress CH-506TXPL

HDMI to CAT5e/6 Transmitter (4K@60 420 up to 35M) - Cypress CH-506TXPL

Artikelnummer: CYP-CH-506TXPL
HAN: CH-506TXPL
Kategorie: Extenders
Hersteller: Cypress Technology

The HDBaseTTM HDMI over single CAT5e/6 with bidirectional IR, RS-232 & PoE Transmitter and Receiver set can make your home or of ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

The HDBaseTTM HDMI over single CAT5e/6 with bidirectional IR, RS-232 & PoE Transmitter and Receiver set can make your home or offi ce setup more effi cient and easy to use. Uncompressed video and audio can be transmitted up to 60 meters with the PoE function and added benefi t of controls through the built-in RS-232 and IR ports. This family design of HDBaseT™ technology allows a full usage of HDMI and controls over CAT5e/6 cable.

Compatible with HDCP and DVI
Supports HDMI 3D and 4K x 2K features
Supports HDBaseT-Lite Technology
Supports HD resolutions up to 1080p@60Hz/36-bit
Supports distance up to 60 meters through CAT5e/6/7 cable
HDMI input/output up to 15 meters with 8bits resolution or 10 meters with 12bits resolution
RS-232 with baud rate up to 115200/sec
Supports wide range of IR frequency from 30~50kHz
Supports HDCP repeater and CEC bypass
Audio supports LPCM 7.1CH, Dolby TrueHD, Dolby digital Plus and DTSHD Mater Audio transmission

Interfaces
Input Port	HDMI (Type A) 1 x IR Extender (3.5mm) 1 x RS-232 (3.5mm)
Output Port	1 x CAT5e/6 1 x IR Blaster (3.5mm)

Video
HDMI Compliance	HDMI2.0 (DVI1.0)
HDCP Compliance	2.X
Input Signal Types	4096x2160p@60 8bit YUV 4:2:0
Output Signal Type	4096x2160p@60 8bit YUV 4:2:0

Resolutions
Maximum Input	HDMI	4096x2160p@60 YUV 4:2:0
Maximum Output	CAT5e/6	4096x2160p@60 YUV 4:2:0

Power
Power Supply	24V/1.25A DC (US/EU standards, CE/FCC/UL certifi ed)
Power Consumption	6W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	71 mm x 23 mm x 73.5 mm [Case Only] 71 mm x 23 mm x 79 mm [All Inclusive]
Weight	120g

Field Firmware Update
Interface	PCB on board, uses RS232

Ordering Information
Model No.	Product Description
CH-506TXPL	HDMI to CAT5e/6 Transmitter
CH-506RXPL	HDMI to CAT5e/6 Receiver
