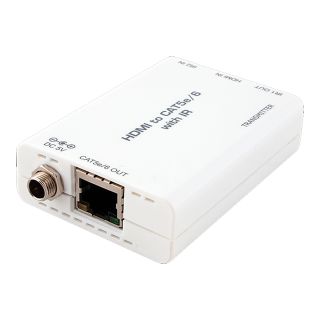

HDMI to CAT5e/6 with IR (4K@60 420 up to 40M) - Cypress CH-514TXL

HDMI to CAT5e/6 with IR (4K@60 420 up to 40M) - Cypress CH-514TXL

Artikelnummer: CH-514TXL
HAN: CH-514TXL
Kategorie: Extenders
Hersteller: Cypress Technology

The HDMI Extender over single CAT5e/6/7 incorporating IR signal transfer allows for a more efficient system setup and is easy to ...

193,59 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

The HDMI Extender over single CAT5e/6/7 incorporating IR signal transfer allows for a more efficient system setup and is easy to install. Uncompressed video and audio can be transmitted to distances of up to 70 meters (1080p) and supports High Definition Audio and 3D signals. Designed with HDBaseT technology for greater flexibility in custom installations with full HDMI and control signal transfer over a single CAT5e/6/7 cable.

Supports distance up to 70m/229ft at 1080p and 40m/131ft at 4K
HDBaseT feature support: HD Video, Audio, and IR/RS-232 Control pass-through
Supports HDCP repeater and CEC bypass
Input/output resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz(YUV 4:4:4, 8-bit)
HDMI with 3D, 4K2K support, HDCP and DVI compliant
Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI

Interfaces

Input Port

HDMI(Type-A)

IR Blaster(3.5mm)

Output Port

HDBaseT (RJ-45)

IR Extender(3.5mm)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.x
Input Signal Type	4K@60 YUV 4:2:0
Output Signal Type	4K@60 YUV 4:2:0
Resolutions
Maximum Input	HDMI	4096×2160p@60 YUV 4:2:0
Maximum Output	HDBaseT	4096×2160p@60 YUV 4:2:0

Power
Power Supply	5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	3W

Enclosure
Chassis Material	Plastic
Chassis Color	White
Dimensions (W×H×D)	55 mm × 22.5 mm × 82 mm
Weight	56g

Field Firmware Update
PCB on board, uses RS232

ORDERING INFORMATION
Model No.	Product Description
CH-514TXL	HDMI to CAT5e/6/7 with IR
CH-514RXL	CAT5e/6/7 to HDMI with IR
