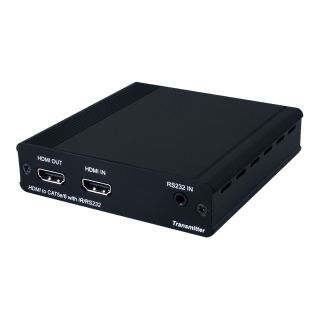

The HDMI over HDMI and CAT5e/6/7 Transmitter can convert a single HDMI input, 2-way IR and RS-232 control to a single CAT5e/6/7 output and includes a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4K×2K timing, 3D and multi-channel digital audio formats (such as LPCM 7.1CH, Bitstream, HD Bitstream). The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The CAT5e/6/7 output can be connected to a CAT5e/6/7 to HDMI Receiver to extend the operating distance up to 70 meters with Power Over Cable feature.
- HDMI with 3D & 4Kx2K supported
- Simultaneous HDMI and CAT5e/6/7 outputs
- Supports up to 4096x2160@60Hz YUV 4:2:0 8bit
- Supports LPCM 7.1CH, Bitstream, HD Bitstream transmission (32-192kHz sample rate)
- Supports distances up to 70 meters through CAT5e/6/7 cables
- Supports Bidirectional IR control
- The 3D signal display follow by display TV?s EDID
Interfaces | |
Input Port | 1 HDMI (Type-A) |
Output Port | 1 HDMI (Type-A) 1 CAT5e/6/7 |
Pass-through Port | 1 RS-232 (3.5mm) 1 IR IN (3.5mm) 1 IR OUT (3.5mm) |
Service Port | 1 USB(Mini-B) |
Video | ||
HDMI Compliance | HDMI 2.0a (DVI 1.0) | |
HDCP Compliance | 2.x | |
Input Signal Type | 4096x2160@60Hz YUV 4:2:0 8bit | |
Output Signal Type | 4096x2160@60Hz YUV 4:2:0 8bit | |
Resolutions | ||
Maximum Input | HDMI | 4096×2160p@60 4:2:0 |
Maximum Output | HDMI | 4096×2160p@60 4:2:0 |
HDBaseT | 4096×2160p@60 4:2:0 | |
Audio | |
HDMI | LPCM(8CH), Bitstream, HD Bitstream |
HDBaseT | LPCM(8CH), Bitstream, HD Bitstream |
Power | |
Power Supply | 24V / 1.25A DC |
Power Consumption | 7W |
Enclosure | |
Chassis Material | Aluminum |
Chassis Color | Black |
Dimensions (W×H×D) | 102 mm x 25 mm x 102 mm [Case Only] 102 mm x 25 mm x 110 mm [All Inclusive] |
Weight | 252g |
Field Firmware Update | |
USB to PC |
ORDERING INFORMATION | |
Model No. | Product Description |
CHDBT-1H1CPL | HDMI to CAT5e/6 with IR/RS232 |
