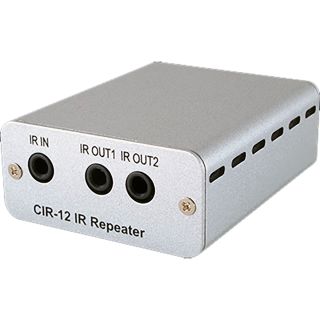

Infrared over CAT5 Extender - Cypress CIR-12

Infrared over CAT5 Extender - Cypress CIR-12

Artikelnummer: CYP-CIR-12
HAN: CIR-12
Kategorie: Extenders
Hersteller: Cypress Technology

The IR Extender and the IR Repeater Box are perfect for controlling source devices over long distances using CAT5 Cable. By usin ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

The IR Extender and the IR Repeater Box are perfect for controlling source devices over long distances using CAT5 Cable. By using the built-in IR Receiver of the IR Repeater, users are able to control up to five sources (with the original remote controls) at the same time at a distance of up to 250 m. There are no space limitations with these devices, which means even if the sources are in a different room or even another floor than the display, the performance stays the same. The IR Extender and the IR Repeater Box give users an easy and convenient way to control their desired source. If however, users only wish to control sources in the same room then the IR Repeater Box will be enough to control up to 2 sources. The IR Extender Box is designed for longer distances and extra source device control than the IR Repeater Box.

Supports up to 5 outputs (3 for Infrared Extender, 2 for Infrared Repeater
Control source devices anywhere within 250 m, can be run through walls and ceilings
Transmits infrared signals only
It allows the use of existing remote controls
Only one IR Receiver is needed
IR Receiver’s frequency range is 30~50 kHz

Interfaces
Input Port	1 IR Extender (3.5mm)
Output Port	2 IR Blaster (3.5mm) 1 IR CAT5(Cat5e)

Power
Power Supply	5 V/1 A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	0.5 W

Enclosure
Chassis Material	Aluminum
Chassis Color	Sliver
Dimensions (W×H×D)	62 mm × 23 mm × 50 mm
Weight	78g

Ordering Information
Model No.	Product Description
CIR-12	Infrared over CAT5 Extender
