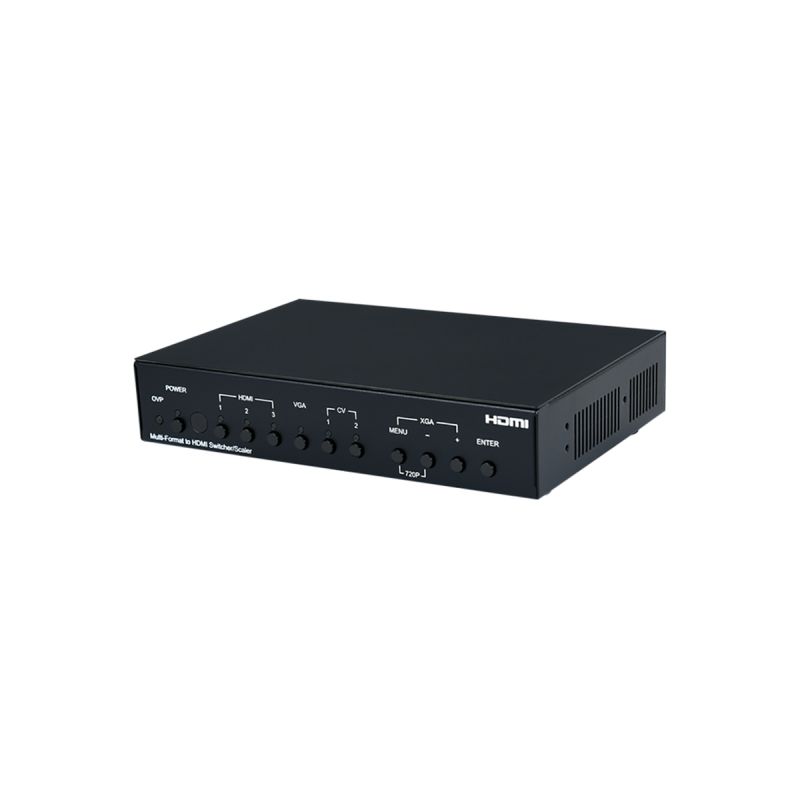

This unit has Composite Video, PC (VGA), and HDMI inputs which can be freely selected for output at a scaled resolution of the user?s choosing over the HDMI output. This unit also includes separate analog and digital audio outputs to provide additional playback flexibility. Support for HDMI output resolutions up to 1080p/WUXGA (RB) and Analog to Digital Conversion (ADC) functionality combine to allow for a wide range of AV signals to be displayed on the connected HDMI display. The unit can be controlled via front panel buttons with an On-Screen Display (OSD), WebGUI, Telnet, RS-232, and IR remote making it exceptionally versatile.
- Supports switching and scaling of multiple AV inputs to HDMI output
- HDMI and DVI compatible
- Supports output resolutions up to 1080p/WUXGA(RB)
- Supports 3D de-interlace, noise reduction and 3D comb filtering for composite video sources
- Frame rate conversion support
- Quick output resolution switching via hot keys
- Supports analog to digital (ADC) and digital to analog (DAC) audio conversion, insertion and extraction
- Supports EDID and HDCP management
- HDCP management control improves display compatibility with certain sources

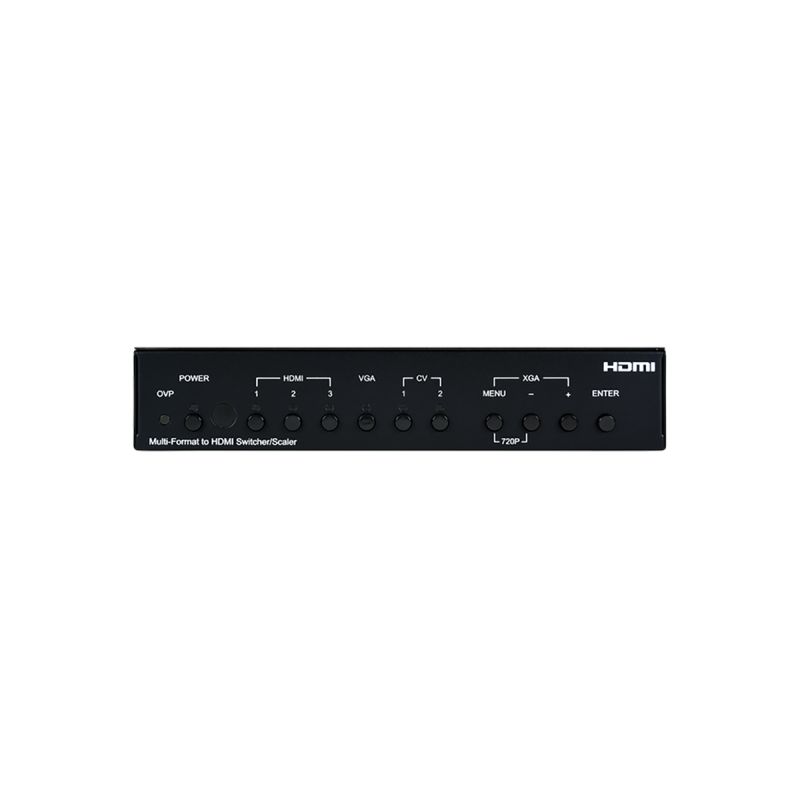

- Controllable via front-panel controls with OSD, RS-232, Telnet, WebGUI, and IR remote
Video Bandwidth | 10.2Gbps (340MHz) |

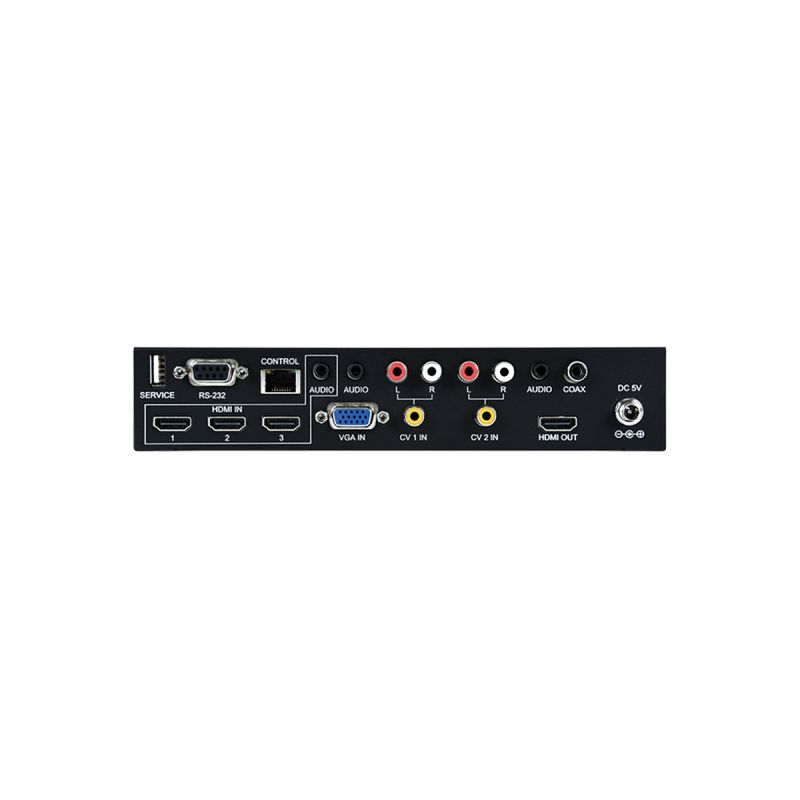

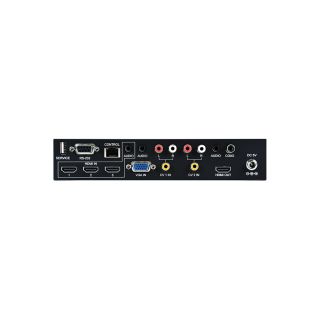

Input Ports | 3×HMDI, 1×VGA, 2×CV, 2×3.5mm (Analog Stereo), 4×RCA (Analog Stereo) |
Output Ports | 1×HDMI, 1×3.5mm (Analog Stereo), 1×RCA (S/PDIF Audio) |
Control Ports | 1×RS-232, 1×IP Control |
Supported Resolutions | 480i@60Hz - 1080p@60Hz (12-bit) VGA@60Hz - WUXGA@60Hz (RB) |
IR Frequency | 30 - 50 kHz (30 - 60kHz under ideal conditions) |
Baud Rate | Up to 115200 bps |
Power Supply | 5V/3A DC (US/EU standards, CE/FCC/UL certified) |
ESD Protection | Human Body Model: ±8KV (Air Discharge), ±4KV (Contact Discharge) |
Dimensions | 215mm×42mm×144mm (W×H×D) [Case Only] 215mm×47mm×153mm (W×H×D) [All Inclusive] |
Weight | 1,030g |
Chassis Material | Metal |
Silkscreen Color | Black |
Operating Temperature | 0?C - 40?C/32?F - 104?F |
Storage Temperature | ?20?C - 60?C/?4?F - 140?F |
Relative Humidity | 20 - 90% RH (No-condensing) |
Power Consumption | 4.8W |
