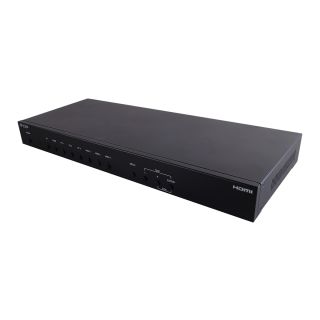

Multiple Inputs to HDMI/VGA Scaler - Cypress CSC-5500N

Multiple Inputs to HDMI/VGA Scaler - Cypress CSC-5500N

Artikelnummer: CSC-5500N
HAN: CSC-5500N
Kategorie: Scaler
Hersteller: Cypress Technology

This Multi Inputs Scaler has Composite Video, Component Video, PC (VGA), and HDMI inputs. It can switch and scale the signal to ...

825,41 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This Multi Inputs Scaler has Composite Video, Component Video, PC (VGA), and HDMI inputs. It can switch and scale the signal to HDMI or VGA with audio outputs. It supports HDMI output resolutions up to 1080p/WUXGA with Analog Digital Conversion (ADC) and Digital Analog Conversion (DAC), allowing multi-format inputs to be displayed on an HDMI or VGA monitor. In addition, the On-Screen Display (OSD), IR remote, RS-232, IP (Telnet/WebGUI) and on-panel controls make this product very versatile as it can be used in various scenarios.

Supports switching and scaling of multi-format inputs to HDMI or PC/HD
Supports EDID management and HDCP compliance
Supports 3D de-interlace and 3D comb filter
Supports frame rate conversion
Supports RS-232, IP (Telnet/WebGUI) and IR controls
Supports output timing hot keys switching
Supports Digital to Analog (DAC) and Analog to Digital (ADC) Audio conversion

Interfaces

Input Port

3×HDMI

3×VGA (15-pin D-sub)

1×Component Video (COMP)

1×Composite Video (CV)

6×Stereo Audio (3.5mm)

4×RCA Stereo Audio

Output Port

2×HDMI

1×VGA (15-pin D-sub)

1×Coaxial Audio

1×Stereo Audio (3.5mm)

Video
HDMI Compliance	HDMI 1.3(DVI 1.0)
HDCP Compliance	HDCP 1.4
Input Signal Type	CVBS : NTSC, PAL, SECAM Component: Up to 1080@p60 PC: Up to WUXGA(RB) HDMI: Up to 1080@p60
		Resolutions
Maximum Input	HDMI	1920×1080p@60 1920×1200@60 (RB)
	CVBS	480i@60/576i@50
	Component	1920×1080p@60
	PC	1920x1200@60RB
Maximum Output	HDMI	1920×1080p@60 1920×1200@60 (RB)
	PC	1920x1080p@60Hz 1920×1200@60 (RB)

Audio
HDMI	LPCM (2 Channels)
Line in	2 Vrms
Line Out	2 Vrms

Power
Power Supply	5 V/3A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	11W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	432 mm × 47 mm × 183 mm [All Inclusive]
Weight	2140 g

Field Firmware Update
USB

ORDERING INFORMATION
Model No.	Product Description
CSC-5500N	Multiple Inputs to HDMI/VGA Scaler
