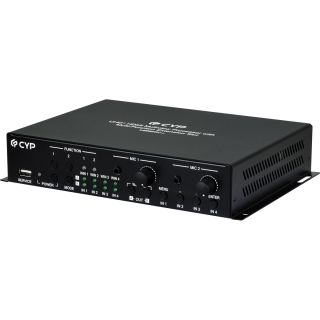

Multiview Modular Processor - Cypress CSC-VPR-3421

Multiview Modular Processor - Cypress CSC-VPR-3421

Artikelnummer: CSC-VPR-3421
HAN: CSC-VPR-3421
Kategorie: Scaler
Hersteller: Cypress Technology

CSC-VPR-3421 is a wonderful solution for streaming as it not only combines both streaming and recording functionality but offers ...

1.847,94 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

CSC-VPR-3421 is a wonderful solution for streaming as it not only combines both streaming and recording functionality but offers rich video processing functions. It makes online broadcasting of live video an easy and simple process. Video content up to 4K UHD+ is supported and is automatically scaled to a resolution that is more appropriate for efficient streaming. Both HDMI and VGA inputs are supported. An HDMI output is provided for local monitoring. An audio mixer function is included, allowing an external audio source to be mixed with the embedded audio of your HDMI source (LPCM 2.0 only) for your video stream. Comprehensive EDID management, intuitive WebGUI, and adjustable Audio functions make this unit a terrific tool for video streaming and recording.

Besides high performance HDMI switch with integrated scaling, multi-windowing technology, multi-view and streaming are also supported. Any of 4 different HDMI sources may be displayed individually, full screen, or they can be displayed using a variety of multi-window modes including quad mode PiP, and PoP mode, which becomes splendid source for streaming.

Serves as a signage platform to couple with CYP modular solutions for multiple ProAV purposes
HDMI inputs and outputs with 18Gbps (600MHz) 4K UHD support
Seamless switching (no loss of sync to display) when switching sources in 4x2 matrix mode
Supports PiP (Picture-in-Picture), PoP, quad mode display options with independent audio source selection
Supports the ability to store a multi-window arrangement as a preset that can be recalled later
EDID management
Uploadable and freely positioned graphic logo support
Supports easy adjustment of window size, position and settings in the PiP windowing mode via the WebGUI
Controllable via front panel buttons, WebGUI, Telnet, RS-232

Interfaces
Input Port	4 HDMI (Type-A) 3 Stereo (3.5mm)
Output Port	2 HDMI (Type-A) 2 Stereo (3.5mm)
Control I/O	1 RS-232 3-pin Terminal Block 1 IP Control (RJ-45)
Service Port	1 USB (Type-A)

Video
HDMI Compliance	2.0 (DVI 1.0)
HDCP Compliance	2.2
Input Signal Types	4K@60 8 bit YUV 4:4:4
Output Signal Types	4K@60 8 bit YUV 4:4:4
Resolutions
Maximum Input	HDMI	4096x2160p@60
Maximum Output	HDMI	4096x2160p@60

Audio
HDMI Input 1,2	LPCM (8 channel,192kHz) Bitstream High-Definition Bitstream
HDMI Input 3,4	LPCM (2 Channels, 48KHz)
Line In	Max Audio Level: 2Vrms Impedance: 10kΩ Type: Unbalanced

Power
Power Supply	24V/2.7A DC
Power Consumption	24W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	213.5mm×43mm×179.3mm [Case Only] 213.5mm×44mm×180.3mm [All Inclusive]
Weight	1257g

Field Firmware Update

USB Flash Drive, WebGUI

ORDERING INFORMATION

Model No.	Product Description
CSC-VPR-3421	Multiview Modular Processor
SDM-S100E	H.264/265 Live Video Streaming and Recording Module Card with 4K@30
SDM-S301E	H.264/265 Live Video Streaming and Recording Module Card with 4K@60
