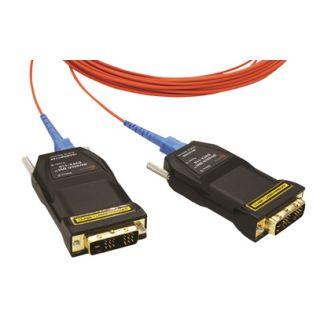

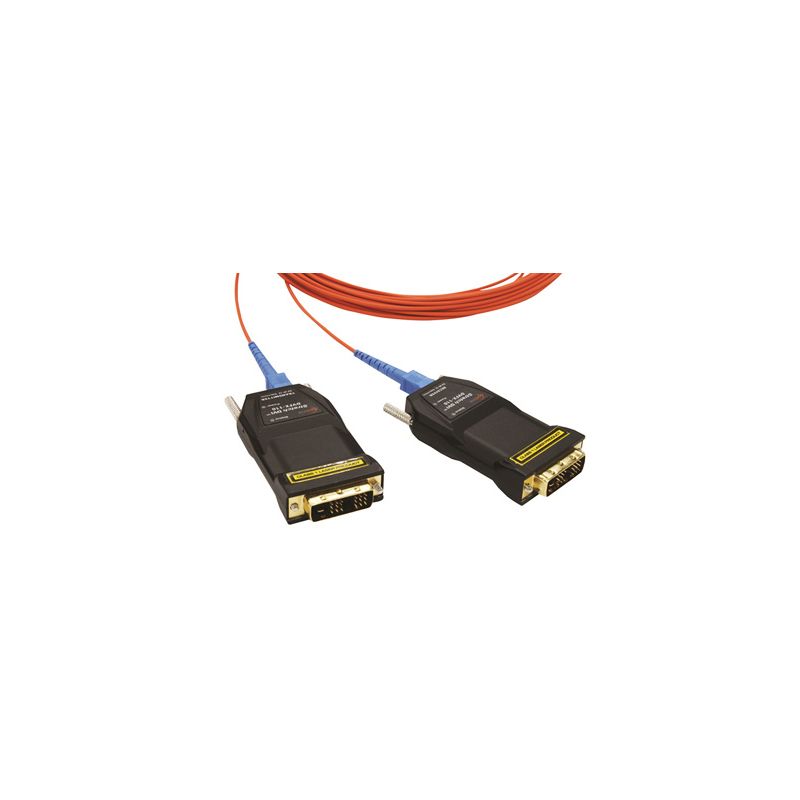

Opticis DVFX-110-TR - One (1) fiber Detachable DVI Module
The detachable DVI extender, DVFX-110-TR offers easy connection to your existing system with minimum efforts and no modification, since it is designed compactly enough and with all industry standard connectors. The metallic die-casting enclosure gives reliable installation, excellent EMI shields and heat dissipation in harsh and noisy environments.
For better installation flexibility, it features patent pending Self-EDID management, reading and restoring by just plugging to the display. It is also certified with IEC60601-1-2, FCC/CE and Class 1 LASER Eye Safety for various applications.
? Small and solid aluminium enclosure
? Easy and simple installation with a single fiber

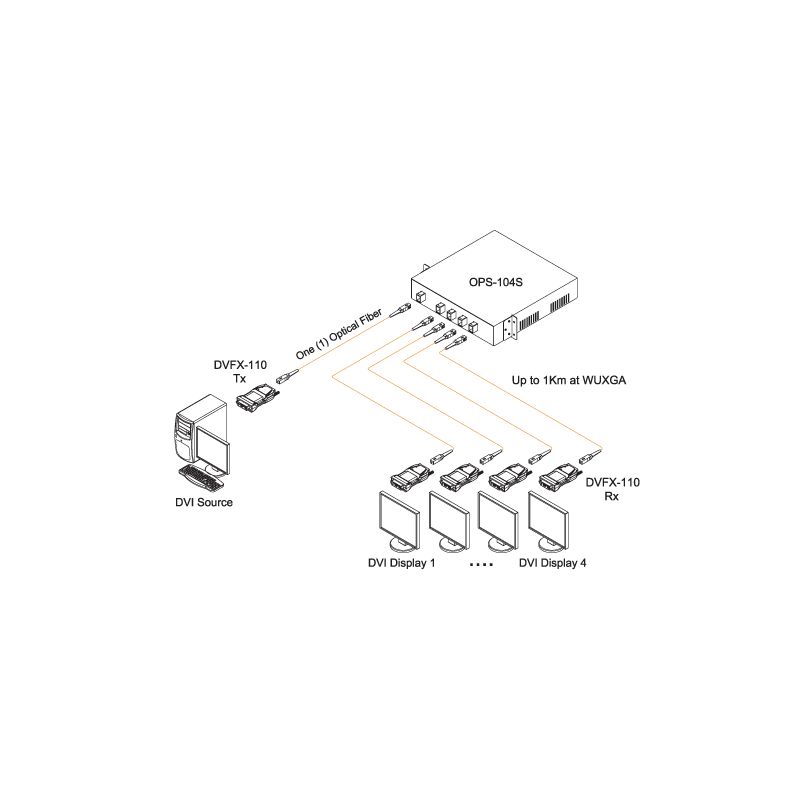

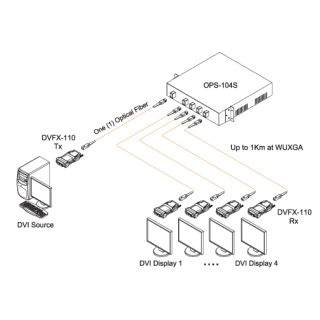

? Copies one (1) signal up to 16 times with optical passive splitter (Securing the distance without any signal loss)
? Reads and restores the targeted EDID in the transmitter (Self-EDID)
? Provides Power, Status (Signal transmission in transmitter and signal detection in receiver) LED indicators
? Auto-power switching
? Supports up to WUXGA(1920x1200), 60Hz
? Supports bit rate up to 1.65Gbps/ch
? Uncompressed DVI signal up to 1,000m (3280ft) over one (1) single-mode fiber or 500m (1640ft) over one (1) multi-mode fiberwith SC terminated connector
? Operating temperature: 0 ~ 50?
? Storage temperature: -30 ~ 70?
? Input power: +5V 2A
? Size (WDH): 39 x 68 x 14.6mm
