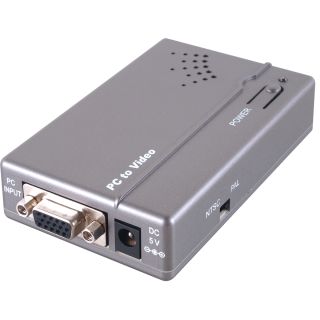

PC to Video - Cypress CPT-385AMN
This VGA to CV/SV scaler is designed to convert and scale a variety of analog
computer resolutions, from VGA to WUXGA (RB), into interlaced NTSC or PAL
video. With frame rate conversion and Overscan/Underscan features that allow
users to view a PC source on a Composite or S-Video monitor without the
image extending beyond the edge of the screen and being cut off.
- Automatically detects and down converts the incoming VGA signal to NTSC or PAL
- Supports high resolution PC input timings from VGA to WUXGA (RB)
- Scaled video is output simultaneously as Composite and S-Video signals
- Output format is switchable between NTSC/PAL
- Manual Overscan/Underscan selection
Interfaces | |
Input Port | 1×VGA (HD-15) |
Output Port | 1×S-Video (4-pin mini-DIN) 1×Composite Video (RCA) |
Video | ||
Input Signal Type | WUXGA | |
Output Signal Type | CV/SV: NTSC, NTSC4, PAL, PAL-M, PAL-N & SECAM | |
Resolutions | ||
Maximum Input | VGA | 1920×1200@60 (RB) |
Maximum Output | SV | 480i@60/576i@50 |
CV | 480i@60/576i@50 | |
Power | |
Power Supply | 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) |
Power Consumption | 5W |
Enclosure | |
Chassis Material | Plastic |
Chassis Color | Gray |
Dimensions (W×H×D) | 100mm×18.5mm×64mm [Case Only] 113mm×26mm×64mm [All Inclusive] |
Weight | 90g |
Field Firmware Update | |
PCB on board, uses RS232 |
ORDERING INFORMATION | |
Model No. | Product Description |
CPT-385AMN | PC to Video |
