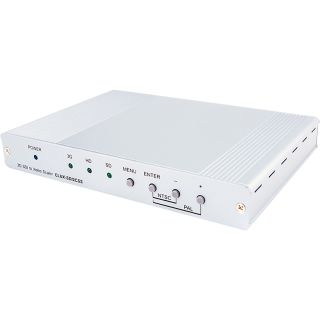

SDI to CV/SV Scaler with Audio - Cypress CLUX-SDI2CSS-W

SDI to CV/SV Scaler with Audio - Cypress CLUX-SDI2CSS-W

Artikelnummer: CLUX-SDI2CSS-W
HAN: CLUX-SDI2CSS-W
Kategorie: Video Processor
Hersteller: Cypress Technology

The SDI to CV/SV Scaler allows SD, HD and 3G-SDI signals to be shown on CV/SV display. This means that it is now easier for prof ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

The SDI to CV/SV Scaler allows SD, HD and 3G-SDI signals to be shown on CV/SV display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on PC/HD display. Furthermore, thanks to coaxial (S/PDIF) and L/R audio outputs users can output audio in both digital and analog formats while the loop-through 3G-SDI design benefits users by letting them simultaneous show content on SDI, Composite Video and S-Video displays.

Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection
Supports CV/SV and SDI (bypass) output simultaneously
SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s,

1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s

Supports SDI input/output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
Scale any SDI signal to CV/SV of NTSC or PAL format
Supports SDI input modes:

1. SD-SDI: SMPTE 259M-C, at bitrates of 270 Mbit/s

2. HD-SDI: SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s

3. 3G-SDI: SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s

Equalized and re-clocked loop output
Alternative audio output to coaxial and analog 2CH

SMPTEStandard	425M Level A & B, 424M, 292M, 259M-C
SDITransmissionRates	2.970 Gbps and 2.970/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps, and 270 Mbps
InputPort	1×BNC (SD/HD/3G-SDI)
OutputPort	1×BNC (SD/HD/3G-SDI bypass), 1×CV, 1×SV, 1×Coaxial, 1×R/L RCA Jack
Video OutputSupport	NTSC/PAL
SDITimingSupport	SD-SDI: SMPTE 259M-C, at bitrates of 270 Mbit/s HD-SDI: SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s 3G-SDI: SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s
PowerSupply	5 V DC/2.6 A (US/EU standards, CE/FCC/UL certified)
ESDProtection	Human-body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
SDICableDistance	3G up to 100 m (BELDEN 1694A Cable) HD up to 200 m (BELDEN 1694A Cable) SD up to 300 m (BELDEN 1694A Cable)
Dimensions	180 mm (W)×142 mm (D)×25 mm(H)
Weight	435 g
ChassisMaterial	Aluminum
SilkscreenColor	Gray
OperatingTemperature	0 ˚C~40 ˚C/32 ˚F~104 ˚F
StorageTemperature	−20 ˚C~60 ˚C/−4 ˚F~140 ˚F
RelativeHumidity	20~90 % RH (Non-condensing)
PowerConsumption	8.5 W
