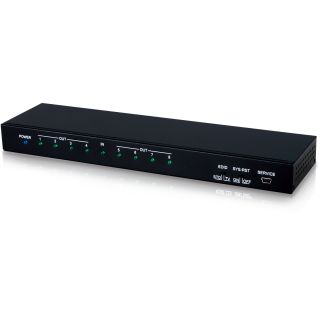

UHD 1×8 HDMI Splitter - Cypress CPRO-U8T (Limited)

UHD 1×8 HDMI Splitter - Cypress CPRO-U8T (Limited)

Artikelnummer: CPRO-U8T
HAN: CPRO-U8T
Kategorie: Splitters
Hersteller: Cypress Technology

This 4K UHD HDMI Splitter provides an advanced solution for splitting and distributing a single HDMI input to 8 HDMI outputs. Th ...

299,19 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This 4K UHD HDMI Splitter provides an advanced solution for splitting and distributing a single HDMI input to 8 HDMI outputs. This splitter provides a high level of audio and video performance with support for video resolutions up to 4K@60Hz (4:2:0) and high definition digital audio formats such as LPCM 7.1, with audio sampling rates up to 192kHz, Bitstream, and HD Bitstream. Standard EDID management functionality is included and the System Reset function allows the unit to automatically change the input selection on any connected, CEC enabled, TVs to the input the unit is currently connected to.

Simultaneous display of a single 4K source on up to eight 4K displays
3D signal support (with 3D source and compatible 3D TV)
Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
System Reset function (CEC active source command)
EDID management control including “Standard” (Internal EDID) mode and “TV” (External Display EDID) modes

Interfaces
Input Port	1 HDMI (Type A)
Output Port	8 HDMI (Type-A)
Service Port	USB(Mini B)

Video
HDMI Compliance	HDMI 1.4 (DVI 1.0)
HDCP Compliance	1.4
Input Signal Types	4096x2160@60Hz YUV 4:2:0 8bit
Output Saignal Type	4096x2160@60Hz YUV 4:2:0 8bit

Resolutions
Maximum Input	HDMI	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60

Power
Digital Format	HDMI LPCM(8 Channels), Bitstream, HD Bitstream

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	260mm×22mm×68mm [Case Only] 260mm×26mm×76.5mm [All Inclusive]
Weight	488g

Field Firmware Update
Interface	PC

Ordering Information
Model No.	Product Description
CPRO-U8T	CPRO-U8T
