This unit can take any standard 4K UHD source from HDMI and generate ahigh quality 2×2 video wall with bezel compensation and full audio bypass.Input supports 4K UHD HDMI video, up to and including 4K@60Hz (4:4:4,8-bit) as well as 10/12-bit. Each of the 4 outputs supports resolutions fixed1080p@60Hz to generate a true 4K video wall with an RS-232 port supportfor event-triggered commands to be sent via RS-232. Built in advanced EDIDmanagement options including Internal, External, and User configurationsas well as advanced HDCP processing allows this video wall unit to handlealmost any source situation. A dedicated PC application allows the user to fullycustomize the video wall and associated features. Multiple control interfacesare available including OSD, RS-232, Telnet and PC tool.
- 1 HDMI input supports sources up to 18Gbps (600MHz) 4K UHD
- 4 HDMI output support output resolutions fixed 1080p@60Hz
- Input supports UHD resolutions up to 4096×2160@60Hz (4:4:4, 8-bit)
- Input supports 4K at 24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12-bit
color (HDR is automatically converted to SDR for 1080p output)
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1,
Bitstream, and HD Bitstream
- Basic signal event automation (via RS-232) to connected HDMI display
- Dedicated PC application for easy control of the unit
| Interfaces | |
|---|
| Input Port | |
| Output Port | |
Control I/O
| -
1 CONTROL (RJ-45)
- 1 RS-232
|
Service Port
| |
| Video | |
|---|
| HDMI Compliance | |
| HDCP Compliance | |
| Input Signal Type | - 4096x2160p@60 8bit YUV 4:4:4
|
| Output Signal Types | |
| Resolutions | |
|---|
| Maximum Input | HDMI | |
| Maximum Output | HDMI | |
| Audio | |
|---|
| Input Signal Types | - HDMI 2CH/7.1CH LPCM, Bitstream, HD Bitstream
|
| Output Signal Types | - HDMI 2CH/7.1CH LPCM, Bitstream, HD Bitstream
|
| Enclosure | |
|---|
| Chassis Material | |
| Chassis Color | |
| Dimensions (W×H×D) | - 213.5mm×44mm×153mm [Case Only]
- 215mm×47mm×158mm [All Inclusive]
|
| Weight | |
| Power | |
|---|
| Power Supply | |
| Power Consumption | |
| Field Firmware Update | |
|---|
| Interface | - USB Flash Drive, PC application
|
| Ordering Information | |
|---|
| Model No. | Product Description |

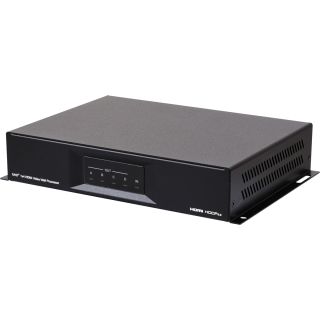

CDPS-4KQ-AD
| - UHD+ 1x4 HDMI Video Wall Processor
|
