This Transceiver is a brand new meaning of transceiver, which able to transmit and receive signal at the same time, there?s no need to confi gure transmitter/ receiver anymore. The unit is designed for high-quality, AV extension with minimum latency through IP transmit. With ultra-light compression scheme (lossless for most content) to extending, 4K audio/video streams (HDMI or DisplayPort) with simultaneous transmitter and receiver Video, and data under 0.1 milliseconds of matrix switch-like end to end transit.Full suite of peripherals supported, including 1G Ethernet, RS232, IR and HID USB. Supporting all HDMI 2.0 formats including multichannel PCM, Dolby True HD and DTS HD master audio.
- Support standard HID USB function
- Video wall image splitting with bezel correction
- Audio down-mixing engine from multi-channel PCM audio to stereo
- Colour space conversion and frame rate conversion
- Simultaneously transmission and receive.
- Signal transmission interfaces with 10-Gigabit Ethernet switches via XFI (IEEE 802.3ae) compatible SFP+ fi ber modules
- Supports the use of an external control center or control software to provide expanded functionality

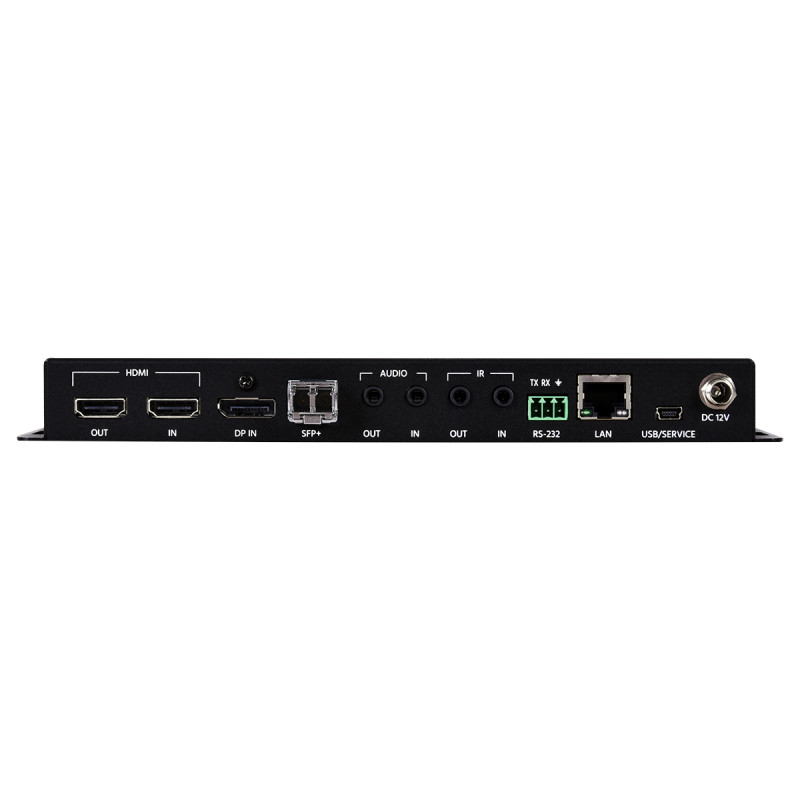

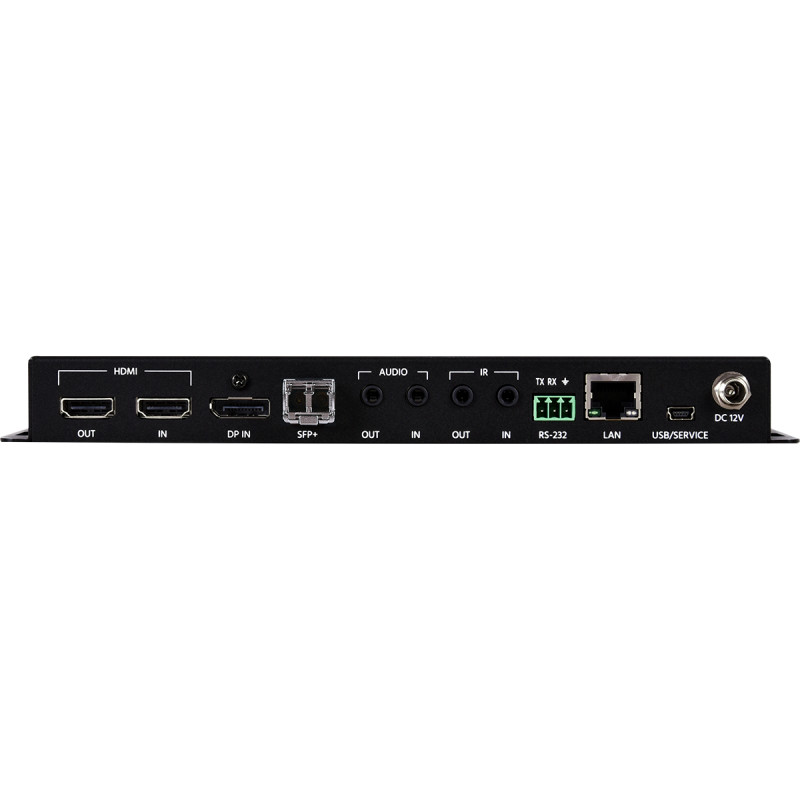

Interfaces | |
Input Port | 1 HDMI (Type A) 1 DisplayPort(Female) 1 Analog(3.5mm) |
Output Port | 1 HDMI (Type A) 1 Analog(3.5mm) |
Bi-directional Port | 1 10GbE LAN (SFP+) |
Control I/O | 1 Ethernet (RJ-45) 1 IR Extender (3.5mm) 1 IR Blaster (3.5mm) 1 RS-232 (3-pin terminal block) 1 USB (Mini-B) 2 USB(Type A) |
Video | ||
HDMI Compliance | HDMI 2.0 (DVI 1.0) | |
HDCP Compliance | 2.X | |
Input Signal Types | 4096x2160p@60 YUV 4:4:4 | |
Output Signal Types | 4096x2160p@60 YUV 4:4:4 | |
Resolutions | ||
Maximum Input | HDMI | 4096×2160p@60 YUV 4:4:4 |
Display Port | 4096×2160p@60 YUV 4:4:4 | |
Maximum Output | SFP+ (Streaming) | 4096×2160p@60 YUV 4:4:4 |
HDMI | 4096×2160p@60 YUV 4:4:4 | |
Audio | ||
Digital Format | HDMI | LPCM (8 Channels), Bitstream, High Bit Rate Bitstream |
Display Port | LPCM (8 Channels), Bitstream, High Bit Rate Bitstream | |
SFP+ | LPCM (8 Channels), Bitstream, High Bit Rate Bitstream | |
Line Level | Line In | 1 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS) |
Line Out | 1 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS) |
Power | |
Power Supply | 12V/3A DC (Locking) |
Power Consumption | 18.51W |
Enclosure | |
Chassis Material | Metal (Steel) |
Chassis Color | Black |
Dimensions (W×H×D) | 231.5mm×25mm×158mm [Case Only] 231.5mm×25mm×167mm [All Inclusive] |
Weight | 916g |
Field Firmware Update | |
PC |
ORDERING INFORMATION
Model No. | Product Description |
AVIP-P5101TR-B1F | UHD+ 2x1 HDMI/DP to HDMI Bi-directional AV over IP |
AVIP-P5102TR-B1F | UHD+ 2x1 HDMI/DP to HDMI Bi-directional AV over IP Transceiver W/USB 2.0 HUB |
CH-V502TR | UHD+ HDMI/USB AV over IP Transceiver |
COH-TR7 | UHD+ HDMI/DP/USB AV over IP Transceiver |
