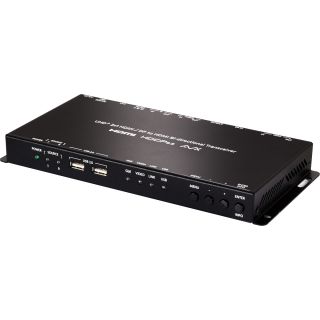

UHD+ 2x1 HDMI/DP to HDMI Bi-directional AV over IP Transceiver W/USB 2.0 HUB (4K@60 444 up to 30KM) - Cypress VEX-X5102TR-B1F (Limited)

UHD+ 2x1 HDMI/DP to HDMI Bi-directional AV over IP Transceiver W/USB 2.0 HUB (4K@60 444 up to 30KM) - Cypress VEX-X5102TR-B1F (Limited)

Artikelnummer: VEX-X5102TR-B1F
HAN: VEX-X5102TR-B1F
Kategorie: Extenders
Hersteller: Cypress Technology

This Transceiver is a brand new meaning of transceiver, which able to transmit and receive signal at the same time, there’s no n ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

This Transceiver is a brand new meaning of transceiver, which able to transmit and receive signal at the same time, there’s no need to confi gure transmitter/ receiver anymore. The unit is designed for high-quality, AV extension with minimum latency through point to point IP transmit. With ultra-light compression scheme (lossless for most content) to extending, 4K audio/video streams (HDMI or DisplayPort) with simultaneous transmitter and receiver Video, and data under 0.1 milliseconds of matrix switch-like end to end transit.

Full suite of peripherals supported, including 1G Ethernet, RS232, IR and USB 2.0 hub equipped. The integrated USB hub of each Transceiver can be confi gured to be in USB Host or Device Mode and can function as a simple point to point KVM extension, freely routed between any two endpoints, or it can be configured into a special “Simultaneous” mode, allowing up to 4 Host Mode Transceivers to extend their USB ports to a single Device Mode Transceiver.

Point to point extension of audio, video, Gigabit Ethernet, USB and control signals
Zero latency transmission for all signal types
Broadcast quality scaler, programmable to scale up or down any resolutions up to 4K
Audio down-mixing engine from multi-channel PCM audio to stereo
Colour space conversion and frame rate conversion
Ultra-light compression, lossless for most content
Extension up to 30km (maximum distance depends on the SFP+ module and type of fi ber used)
Supports the use of an external control center or control software to provide expanded functionality

Interfaces
Input Port	1 HDMI (Type A) 1 DisplayPort(Female) 1 Analog(3.5mm)
Output Port	1 HDMI (Type A) 1 Analog(3.5mm)
Bi-directional Port	1 10GbE LAN (SFP+)
Control I/O	1 Ethernet (RJ-45) 1 IR Extender (3.5mm) 1 IR Blaster (3.5mm) 1 RS-232 (3-pin terminal block) 1 USB (Mini-B) 2 USB(Type A)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.x
Input Signal Types	4096x2160p@60 8bit YUV 4:4:4
Output Signal Types	4096x2160p@60 8bit YUV 4:4:4
		Resolutions
Maximum Input	HDMI	4096×2160p@60 YUV 4:4:4
	DP	4096×2160p@60 YUV 4:4:4
Maximum Output	SFP+ (Streaming)	4096×2160p@60 YUV 4:4:4
	HDMI	4096×2160p@60 YUV 4:4:4

Audio
HDMI	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
DP	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
SFP+	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
Line In	1 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS)
Line Out	1 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS)

Power
Power Supply	12V/3A DC (Locking)
Power Consumption	18.51W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×158mm [Case Only] 231.5mm×25mm×167mm [All Inclusive]
Weight	916g

Field Firmware Update
Interface	PC

Ordering Information
Model No.	Product Description
VEX-X5102TR-B1F	UHD+ 2x1 HDMI/DP to HDMI Bi-directional AV over IP Transceiver W/USB 2.0 HUB
VEX-X5101TR-B1F	UHD+ 2x1 HDMI/DP to HDMI Bi-directional AV over IP Transceiver W/HID USB
