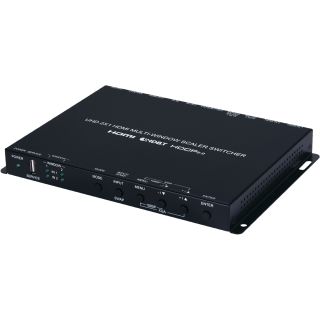

This 2 by 1 HDMI Multiviewer is a high performance HDMI switch withintegrated scaling and multi-windowing technology. It is an ideal solution formonitoring or displaying multiple sources simultaneously for use in controlrooms, conference rooms or classrooms. Video resolutions up to 4K@30Hzwith seamless switch on input and this unit is fully compatible with the HDCP 1.xand 2.2 standards.
Any of 2 different HDMI sources may be displayed individually, full screen, orthey can be displayed using a variety of multi-window modes including PiP,PoP or Custom with the output being sent to 1 HDMI and 1 mirrored HDBaseToutputs Management of input/window routing, position and sizing can becontrolled easily by use of the front panel controls as well as by WebGUI, RS-232, Telnet options.
- Supports 2 HDMI inputs, 1 HDMI & 1 HDBaseT mirror outputs.
- HDBaseT output is PSE (Power Sourcing Equipment) and supplies power to a receiver.
- Supports 2 video windows.
- Input seamless switch (Seamless switch mode in Switcher video mode).
- Color YCbCr444 process (Fast switch mode in Switcher video mode).
- Custom Aspect ratio, custom Zoom ratio adjustment.
- Logo shows in RGB 24bit bitmap.
- Supports user source timing from nonstandard video timing.
| Interfaces | |
|---|---|
| Input Port |
|
| Output Port |
|
| Control I/O |
|
| Service Port |
|
| Video | |||
|---|---|---|---|
| HDCP Compliance |
| ||
| Input Signal Type |
| ||
| Output Signal Types |
| ||
| Resolutions | |||
|---|---|---|---|
| Maximum Input | HDMI |
| |
| Maximum Output | Cat5e/6/7 |
| |
| Enclosure | |
|---|---|
| Chassis Material |
|
| Chassis Color |
|
| Dimensions (W×H×D) |
|
| Weight |
|
| Power | |
|---|---|
| Power Supply |
|
| Power Consumption |
|
| Ordering Information | |
|---|---|
| Model No. | Product Description |
| CDPS-U2HPIP |
|
| CH-1527RX |
|
