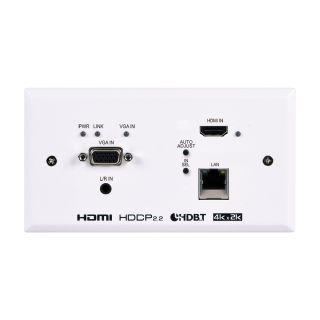

UHD 2x1 HDMI/VGA over HDBaseT Wallplate Transmitter (UK 2-Gang) - Cypress CH-2538TXWPEUK

UHD 2x1 HDMI/VGA over HDBaseT Wallplate Transmitter (UK 2-Gang) - Cypress CH-2538TXWPEUK

Artikelnummer: CH-2538TXWPEUK
HAN: CH-2538TXWPEUK
Kategorie: Extenders
Hersteller: Cypress Technology

This HDBaseT Wall Plate Switchers with signal management is an HDMI and VGA switches with audio embedding and HDBaseT output. Th ...

656,46 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This HDBaseT Wall Plate Switchers with signal management is an HDMI and VGA switches with audio embedding and HDBaseT output. The Wall Plate is designed for use with EU two-gang sized enclosures. It is suitable for various installation requirements with aesthetic considerations. With the use of the 3.5mm audio input, stereo audio may be embedded with VGA or DVI sources as well. Despite HDBaseT’s 10.2Gbps bandwidth limitation, high bandwidth 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit), can be supported and will be automatically converted to 8-bit color, or the 4:2:0 color space when necessary. Signal management features such as automatic switching based on input signal and hot plug detection enable convenient hands-free operation. A multi-function button on the face of the unit provides access to an information OSD as well as allowing manual input selection. Additional functionality such as EDID management, HDCP management and basic signal event automation which can send customized RS-232 or CEC commands to external devices automatically is also available. The units can be controlled via the front panel button with OSD, WebGUI, and Telnet. When paired with a compatible Receiver RS-232 control also becomes available making them exceptionally versatile.

Supports VGA input resolutions up to WUXGA (RB)
Simultaneous transmission of uncompressed video, audio and data over a single 100m Cat.5e/6/7 cable at 1080p and 70m at 4K
Automatic input selection with hot plug detection enabling hands- free operation
Unit may be powered locally or via 48V PoH (PD) from a compatible HDBaseT Receiver (PSE)
Wall plate is designed for UK two-gang sized enclosures
Front panel LEDs indicate input selection, power and link status

Interfaces
Input Port	1 HDMI (Type-A) 1 VGA (HD-15) 1 L/R IN(3.5mm)
Output Port	1 Cat.5e/6/7 (RJ-45)
Service Port	1 USB 2.0 (Type-A)
Pass-through Port	1 LAN (RJ-45)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.2
Input Signal Type	HDMI VGA	4K@60 8-bit YUV 4:4:4 1920x1080P@60Hz
Output Signal Type	Cat5./6/7	4K@30 8-bit YUV 4:2:0
		Resolutions
Maximum Input	HDMI	4096×2160p@60
	VGA	1920×1200@60
Maximum Output	Cat5e/6/7	4096×2160p@30

Audio

Line In

2 Vrms

S/N Ratio: > 80dB (1kHz with 0dBFS)

Power
Power Supply	PoH or 12V/3A DC
Power Consumption	8.688W

Enclosure
Chassis Material	Metal (Aluminum)
Chassis Color	Black
Dimensions (W×H×D)	147mm× 87mm× 42mm [Case Only] 147mm× 87mm× 53mm [All Inclusive]
Weight	264g

ORDERING INFORMATION
Model No.	Product Description
CH-2538TXWPEUK	UHD 2x1 HDMI/VGA over HDBaseT Wallplate Transmitter (UK 2-Gang)
CH-2527RX	UHD HDMI over HDBaseT RECEIVER with IR, RS-232, LAN & PoH (PSE)
