UHD+ 3×1 HDMI/VGA to HDBaseT Switcher with Event Automation (EU 2-gang Box, UK Faceplate) - Cypress CH-2537TXWPEUK
This HDBaseT Wall Plate Switchers with signal management is an HDMI and
VGA switches with audio embedding and HDBaseT output. The Wall Plate is
designed for use with EU two-gang sized enclosures. It is suitable for various
installation requirements with aesthetic considerations. With the use of the
3.5mm audio input, stereo audio may be embedded with VGA or DVI sources
as well. Despite HDBaseT?s 10.2Gbps bandwidth limitation, high bandwidth
4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit), can
be supported and will be automatically converted to 8-bit color, or the 4:2:0
color space when necessary. Signal management features such as automatic
switching based on input signal and hot plug detection enable convenient
hands-free operation. A multi-function button on the face of the unit provides
access to an information OSD as well as allowing manual input selection.
Additional functionality such as EDID management, HDCP management and
basic signal event automation which can send customized RS-232 or CEC
commands to external devices automatically is also available. The units can
be controlled via the front panel button with OSD, WebGUI, and Telnet. When
paired with a compatible Receiver RS-232 control also becomes available
making them exceptionally versatile.

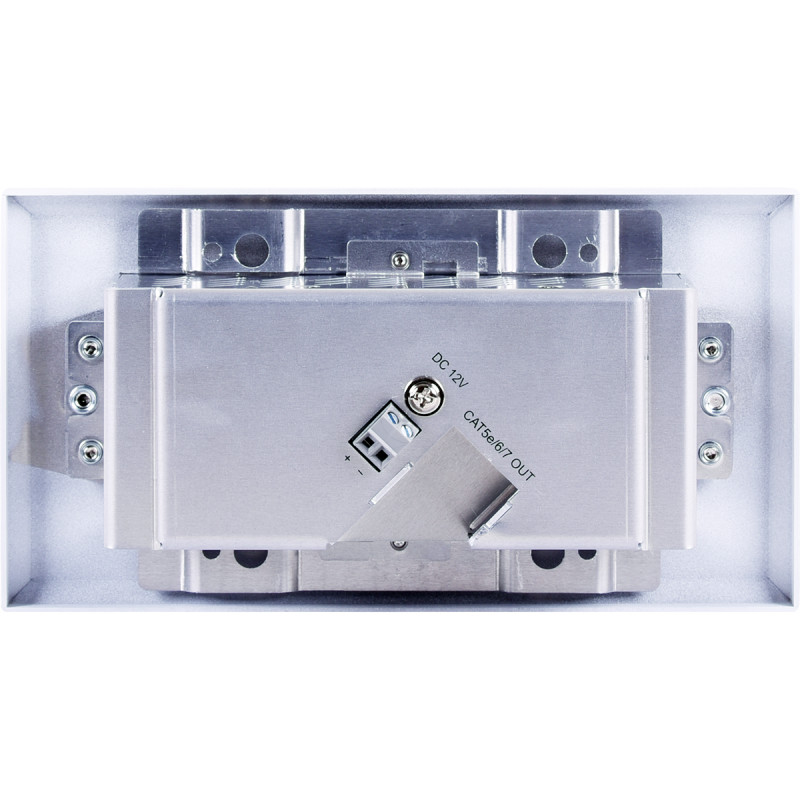

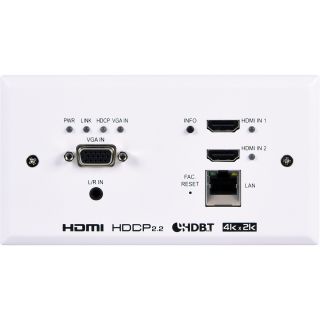

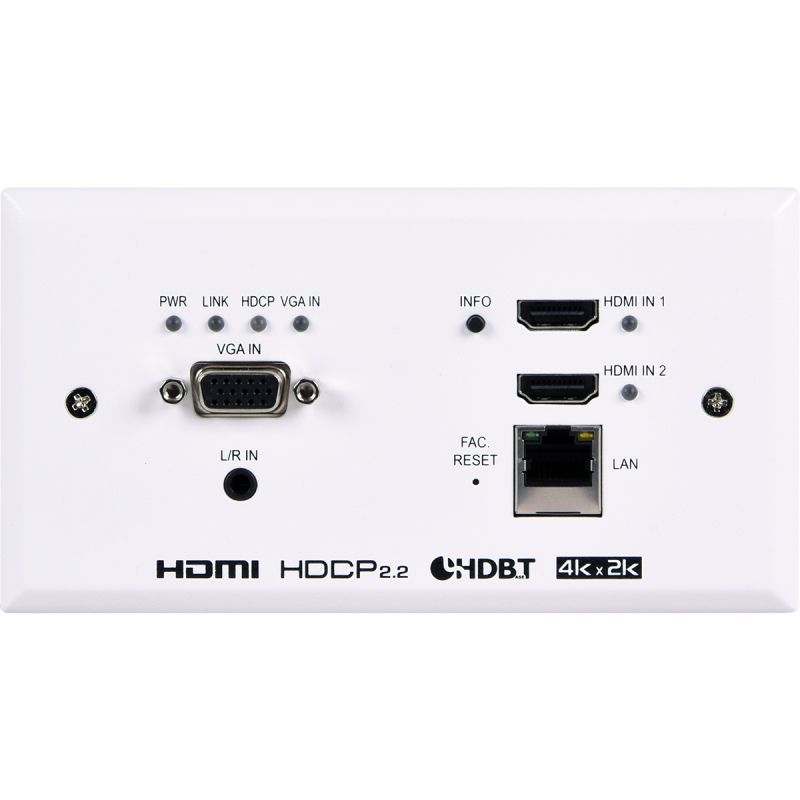

- Front panel push button control
- Front panel LEDs to indicate input selection, link status and power
- HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, and 48V PoH (PD)
- HDBaseT output transmits video, audio and data over a single Cat.5e/6/7 cable and can reach distances up to 100m/328ft at 4K when using Cat.6a/7
- Basic signal event automation (via RS-232 or CEC w/ compatible Receiver)
- Unit may be powered via 48V PoH from a compatible HDBaseT Receiver
HDMI Bandwidth | 18Gbps |
VGA Bandwidth | 165MHz |
HDBaseT Bandwidth | 10.2Gbps |
Input Ports | 2×HDMI (Type-A) 1×VGA (HD-15) 1×Analog Stereo (3.5mm) |
Output Ports | 1×HDBaseT (RJ-45) |
Pass-through/Control Port | 1×LAN (RJ-45) |
Service Port | 1×USB 2.0 (Type-A) |
Baud Rate | Up to 115200 (19200 Control Default) |
Power Supply | PoH or 12V/3A DC (US/EU standards, CE/FCC/UL certified) |
ESD Protection (HBM) | ±8kV (Air Discharge) ±4kV (Contact Discharge) |
Dimensions (W×H×D) | 147mm×87mm×42mm [Case Only] 147mm×87mm×53mm [All Inclusive] |
Weight | 265g |
Chassis Material | Metal (Aluminum) |
Chassis Color | White |
Operating Temperature | 0?C ? 40?C/32?F ? 104?F |
Storage Temperature | -20?C ? 60?C/-4?F ? 140?F |
Relative Humidity | 20 ? 90% RH (Non-condensing) |
Power Consumption | 22.9W |
